PMI-AFD4-020080-23P-SMA-2 Active

High Input P1dB Broadband Amplifier

PMI-AFD4-020080-23P-SMA-2
Product Feature

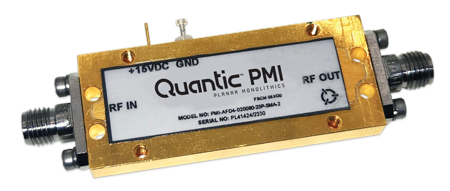

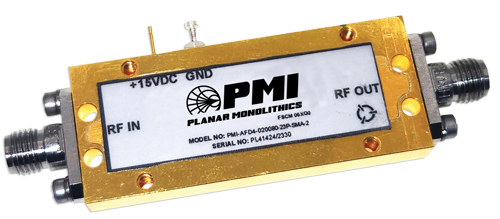

Quantic PMI Model PMI-AFD4-020080-23P-SMA-2 is a 2 to 8 GHz amplifier that provides a maximum gain of 35 dB with a maximum gain flatness of ±2.0 dB; a maximum noise figure of 3.5 dB and a maximum VSWR of 2.0:1. This model is outfitted with SMA female connectors in a housing that measures 1.83" x 0.76" x 0.20".

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 8
Frequency Min (GHz): 2
Frequency Max (GHz): 8
Gain (dB): 32 dB Min
Gain Flatness: ±2.0 dB Max
Noise Figure (dB): 4.5 dB Max
VSWR In/Out: 2.0:1 Max
DC Voltage (VDC): +15 V
DC Current (mA): 370 mA
Input P1dB: -6 dBm Typ, -6.5 dBm Min
Connectors: SMA (F) - field replacable
Size: 1.83" x 0.76" x 0.20"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): 0 °C to +70 °C
Temperature (Storage): -23 °C to +95 °C
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND. B
Vibration: MIL-STD-202F, METHOD 204D COND. B
Altitude: MIL-STD-202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD-202F, METHOD 107D COND. A
