PMIX-4D4G7D8G-1G4D4G-12V
Active
Down Converter Module

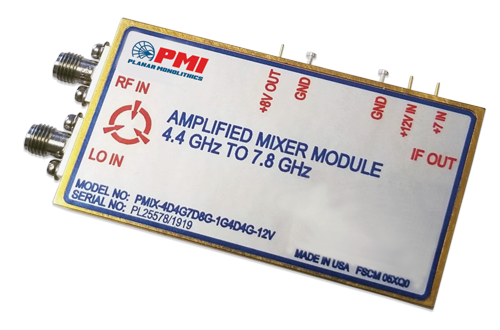

Quantic PMI Model No. PMIX-4D4G7D8G-1G4D4G-12V is a Down Converter Module with an amplified bandpass output of 1.0 to 4.4 GHz.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| RF Input Frequency Range: | 4.4 to 7.8 GHz |
|---|
| RF Input Power: | -15 dBm Typ, -10 dBm Max |
|---|
| LO Input: | 8.8 GHz |
|---|
| LO Input Power: | +18 dBm Typ |
|---|
| IF Output Range: | 1.0 to 4.4 GHz |
|---|
| Gain: | 3 dB Typ |
|---|
| Harmonics: | -60 dBc Max |
|---|
| Spurious: | -60 dBc Max |
|---|
| Output IP3: | +25 dBm |
|---|
| RF Input VSWR: | 5:1 Typ, 6.5:1 Max |
|---|
| IF Output VSWR: | 2:1 Typ, 2.5:1 Max |
|---|
| Absolute Max RF Power (Survival): | +25 dBm |
|---|
| Absolute Max LO Power (Survival): | +25 dBm |
|---|
| DC Power: | +7 to +12 VDC @ 250 mA |
|---|
| Connectors In/Out: | SMA (M)/SMPM (M) |
|---|
| Size: | 2.700" x 1.500" x 0.525" |
|---|
| Finish: | Gold Plated |
|---|
| DC Power Out (Optional): | +8 VDC @ 500 mA (This will increase DC Input Power) |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -40 °C to +85 °C |
|---|
| Humidity: | MIL-STD-810, 0 to 95% Non-Condensing |
|---|
| Shock: | MIL-STD-810, 516.6 Compliant, 20G, 11 ms Duration |
|---|
| Vibration: | MIL-STD-810, Method 515, Fig. 3 (Non-Op) |
|---|
| Altitude: | MIL-STD-810, 15,000 ft. |
|---|
