PMIX-7D8G11D2G-1G4D4G-12V

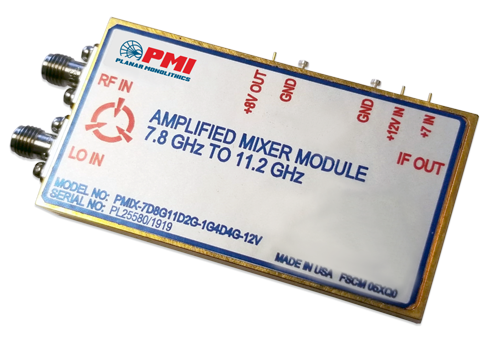

PMI Model No. PMIX-7D8G11D2G-1G4D4G-12V is a Down Converter Module with an amplified bandpass output of 1.0 to 4.4 GHz.

Product Specifications

General Parameters:
Status: Active
RF Input Frequency Range: 7.8 to 11.2 GHz
RF Input Power: -15 dBm Typ, -10 dBm Max
LO Input: 6.6 GHz
LO Input Power: +18 dBm Typ
IF Output Range: 1.0 to 4.4 GHz
Gain: 3 dB Typ
Harmonics: -60 dBc Max
Spurious: -60 dBc Max
Output IP3: +25 dBm
RF Input VSWR: 5:1 Typ, 6.5:1 Max
IF Output VSWR: 2:1 Typ, 2.5:1 Max
Absolute Max RF Power (Survival): +25 dBm
Absolute Max LO Power (Survival): +25 dBm
DC Power: +7 VDC to +12 VDC @ 250 mA
Connectors In/Out: SMA (M)/SMPM (M)
Size: 2.700" x 1.500" x 0.525"
Finish: Gold Plated
DC Power Out (Optional): +8 VDC @ 500 mA (This will increase DC Input Power)
Environmental Ratings:
Operating Temperature: -40 °C to +85 °C
Non-Operating Temperature: -40 °C to +85 °C
Humidity: MIL-STD-810, 0 to 95% Non-Condensing
Shock: MIL-STD-810, 516.6 Compliant, 20G, 11 ms Duration
Vibration: MIL-STD-810, Method 515, Fig. 3 (Non-Op)
Altitude: MIL-STD-810, 15,000 ft.
