PMOD-PWR-1030M-ATN-SFF

Power Detector Module

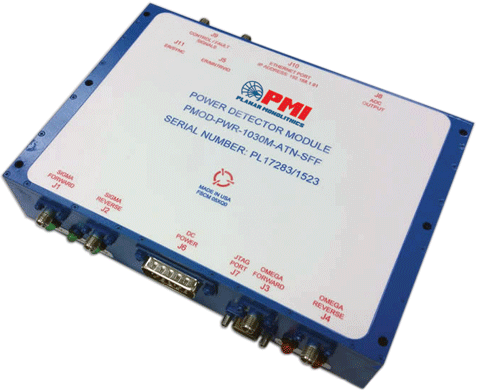

PMI Model No. PMOD-PWR-1030M-ATN-SFF is a power detector module.  The operating frequency is 1030 MHz +/-0.01 MHz.  Two pairs of forward and reverse signals are input allowing for a 12-bit linear digital output proportional to the input power.  A GUI is provided to interface through ethernet and allow MCU programming, unit calibration and setting of the variable attenuators.

Product Specifications

General Parameters:
Status: Preliminary
Product Description: PMI Model No. PMOD-PWR-1030M-ATN-SFF is a power detector module. The operating frequency is 1030 MHz +/-0.01 MHz. Two pairs of forward and reverse signals are input allowing for a 12 bit linear digital output proportional to the input power. A GUI is provided to interface through ethernet and allow MCU programming, unit calibration and setting of the variable attenuators.
Item No.: 53
Finish: Painted Blue
DC Power: +5 VDC +/-5%
+15 VDC +/-5%
-15 VDC +/-5%
Sigma Input Signal: Frequency: 1030 MHz ±0.0 MHz
Forward Input Power (J1): +37.16 dBm ±5 dB (+50 dBm No Damage)
Reverse Input Power (J2): +22.21 dBm ±1 dB (+35 dBm No Damage)
Omega Input Signal: Frequency: 1030 MHz ±0.01 MHz
Forward Input Power (J3): +40.83 dBm ±2 dB (+50 dBm No Damage)
Reverse Input Power (J4): +15.42 dBm ±2.5 dB (+35 dBm No Damage)
Pulsewidth: 38 µs
Amplitude: 0 to 5 VDC
Impedance: 75 Ohms
GUI: - Interfaces with unit through ethernet connection
- Allows setting of variable attenuators
- Allows calibration of power detectors
- Allows programming calibration table to
microcontroller without need for additional hardware
ER/MNTRVID (J5): 0 to 5 VDC Amplitude
Digital Control Lines
(Other than ER/Sync):
TTL Differential Pairs
J1, J2, J3, J4, J5, J11 Connectors: SMA (F)
J6 Connector: 15 Pin Sub-Miniature D Male
J8, J9 Connectors: 37 Pin Sub-Miniature D Male
J7 Connector: Molex 0878331031 or Equivalent
J10 Connector: Ethernet / RJ45
Environmental Ratings:
Temperature: -20 ºC to +55 ºC (Operating)
-40 ºC to +85 ºC (Storage)
Humidity: 0% to 100% Including condensation due to temperature changes
Altitude: 0 to 10,000 Feet Above Sea Level
EMI: MIL-STD-461F CE102
