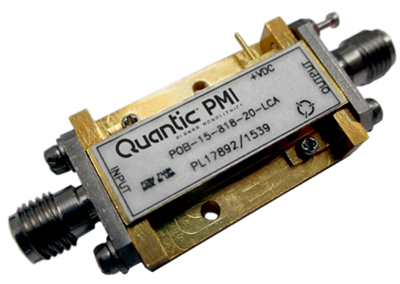

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 8 to 18 |
|---|
| Frequency Min (GHz): | 8 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Gain (dB): | 15 dB Typ |
|---|
| Gain (dB) - Measured: | 15 dB Typ |
|---|
| Gain Flatness (dB): | ±1.75 dB Typ |
|---|
| Gain Flatness (dB) - Measured: | ±1.75 dB Typ - Measured ±0.69 dB |
|---|
| Noise Figure (dB): | 3 dB Typ |
|---|
| Noise Figure (dB) - Measured: | 3 dB Typ - Measured 4 dB |
|---|
| OP1dB (dBm): | 20 dBm Typ,
18 dBm Min |
|---|
| VSWR In/Out: | In: 2.0:1 Max - Measured 1.59:1
Out: 2.0:1 Max - Measured 1.33:1 |
|---|
| DC Voltage Supply: | +12 to +15 VDC Typ |
|---|
| DC Current Draw: | 180 mA Typ - Measured 21.6 mA |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | 1.08" x 0.71" x 0.29" |
|---|
| Housing: | PE2 |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -20 ºC to +70 ºC Operating
-55 ºC to +85 ºC Available
-55 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
