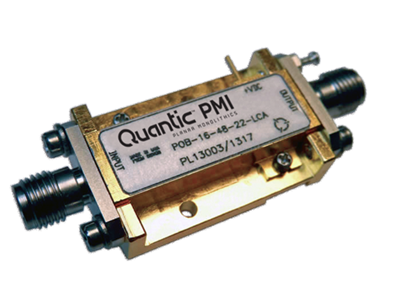

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 4 to 8 |
|---|
| Frequency Min (GHz): | 4 |
|---|
| Frequency Max (GHz): | 8 |
|---|
| Gain (dB): | 16 dB Typ |
|---|
| Gain (dB) - Measured: | 16 dB Typ |
|---|
| Gain Flatness (dB): | ±1 dB Typ |
|---|
| Gain Flatness (dB) - Measured: | ±1 dB Typ - Measured ±0.62 dB |
|---|
| Noise Figure (dB): | 3 dB Typ |
|---|
| Noise Figure (dB) - Measured: | 3 dB Typ - Measured 2.95 dB |
|---|
| OP1dB (dBm): | 20 dBm Min,
22 dBm Typ |
|---|
| VSWR In/Out: | 2.0:1 Typ - Measured 1.16:1 In, 1.27:1 Out |
|---|
| DC Voltage Supply: | +12 VDC |
|---|
| DC Current Draw: | 225 mA Typ - Measured 225 mA |
|---|
| Connectors: | SMA Female - removable |
|---|
| Size: | 1.08" x 0.71" x 0.29" |
|---|
| Housing: | PE2 |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -55 ºC to +95 ºC Operating
-65 ºC to +125 ºC Non-Operating |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
