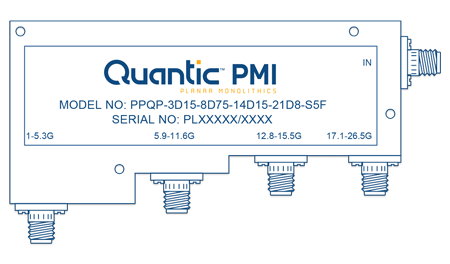

PQP-3D15-8D75-14D15-21D8-S5F

PMI Model No. PQP-3D15-8D75-14D15-21D8-S5F is a quadraplexer with typical center frequencies of 3.15 GHz @ CH1, 8.75 GHz @ CH2, 14.15 GHz @ CH3, and 21.8 GHz @ CH4. It has a maximum VSWR of 2.0:1 and a maximum input power of 1 Watt. This model is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Center Frequency CH1: 3.15 GHz typ.
Center Frequency CH2: 8.75 GHz typ.
Center Frequency CH3: 14.15 GHz typ.
Center Frequency CH4: 21.8 GHz typ.
Bandwidth CH1 @ -1 dB: 1.0 GHz min., 5.3 GHz max.
Bandwidth CH2 @ -1 dB: 5.9 GHz min., 11.6 GHz max.
Bandwidth CH3 @ -1 dB: 12.8 GHz min., 15.5 GHz max.
Bandwidth CH4 @ -1 dB: 17.1 GHz min., 26.5 GHz max.
Insertion Loss @ Up to 16.3 GHz: 1.8 dB max.
Insertion Loss @ 16.3 to 26.5 GHz: 2.5 dB max.
VSWR: 2.0:1 max.
Rejection CH1 @ DC to 0.7 GHz, @ 6.095 GHz: 50 dB min.
Rejection CH2 @ 5.015 GHz, @ 13.34 GHz: 50 dB min.
Rejection CH3 @ 10.88 GHz, @ 17.825 GHz: 50 dB min.
Rejection CH4 @ 14.535 GHz, @ 30.475 GHz: 50 dB min.
Input Power: 1 W max.
Impedance: 50 Ohms
Connectors: SMA (F)
Finish: Painted Blue
Environmental Ratings:
Operating Temperature: -45°C to +85°C
Non-Operating Temperature: -65°C to +125°C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
