PS-1G4G-180-A-SFF Active
Analog Phase Shifter

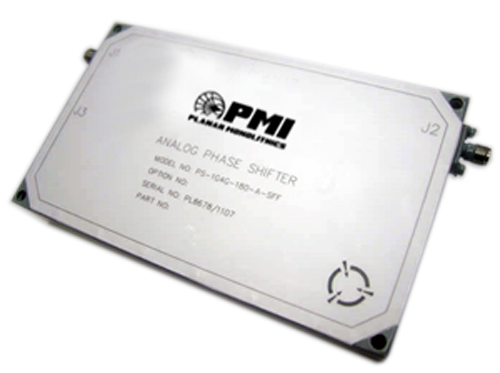

PMI Model PS-1G4G-180-A-SFF is a 1 to 4 GHz, Analog Phase Shifter that operates from 0 to 180°. Package size is 5.0" x 3.0" x 0.9"with 15 Pin Micro-D connector for power/control and SMA female connectors. Optional digital interface available.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 4 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 4 |
| Phase Shift Range: | 0 to 180° |
| Insertion Loss (dB): | 5 dB Typ |
| RF Impedance: | 50 Ohm |
| Control Voltage: | +11 VDC / -11 VDC |
| VSWR: | 2.0:1 Typ |
| Control Connector: | Male 15 PIN Sub-D |
| Connectors: | SMA Female |
| Size: | 5.0" x 3.0" x 0.9" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Non Operating): | -40 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
