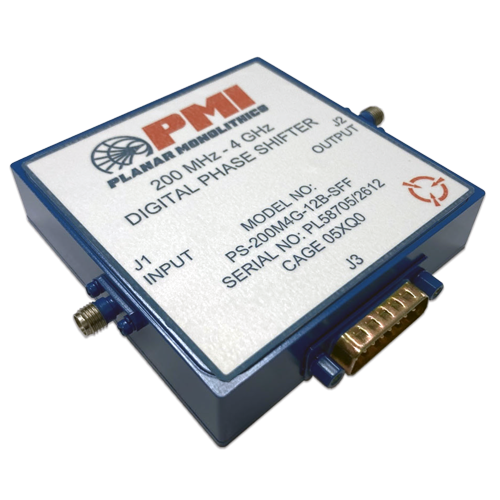

PS-200M4G-12B-SFF Active
Digital Phase Shifter
PMI Model PS-200M4G-12B-SFF is a 12-bit digital phase shifter that operates over the 0.2 to 4 GHz frequency range. This model offers 360° phase shift with an LSB of 0.09°, a phase shift error of ±5°, insertion loss of 10 dB, and a switching speed of 500 ns maximum. Unit size is 3.25" x 3.25" x 0.84" with a 15 Pin subminiature D connector for power/control and SMA female RF connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Min (GHz): | 0.2 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 10 dB Max |
| Phase Shift Range: | 360° |
| Phase Shift Error: | ±5° Max |
| Switching Speed: | 500 ns Max |
| RF Input Power: | 5 dBm Max |
| Power Supply: | +15 VDC @ 300 mA Max -15 VDC @ 50 mA Max |
| No. Control Bits: | 12 Bit TTL |
| Control & Power Connector: | 15 Pin D-Sub |
| RF Connectors: | SMA Female |
| Size: | 3.25" x 3.25" x 0.84" |
| Finish: | Painted Blue |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
