PS-2G18G-360-12D-TS Active

12 Bit, Vector Phase Shifter

Buy Now
PS-2G18G-360-12D-TS
Product Feature
Additional Documents

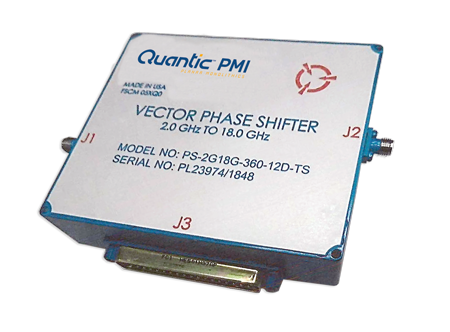

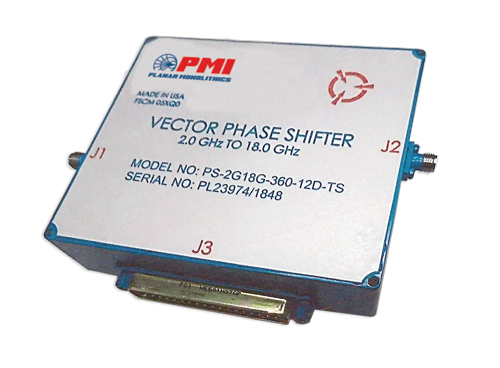

Quantic PMI Model PS-2G 18G-360-12D-TS is a 2 to 18 GHz, 12 Bit, Vector Phase Shifter making it ideal for frequency translation where continuous monotonic phase shifting is required.  Features high speed switching, and typically lower than 60 dB harmonic distortion. Housing size is 4.25" x 3.5" x 1.0" with a DB-37P, SUB-D Multi-Pin connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Insertion Loss (dB): 18 dB Max
Insertion Loss - Measured (dB): 17.7 dB
Phase Shift Range: 360°
Phase Shift Error: ±15° Typ
Switching Speed: 500 ns Max
Logic: 12 Bit TTL Compatible
Control Slopes: Linear
PM / AM: ±3.5 dB Typ
RF Input Power: 20 dBm CW, 1 W Max
VSWR: 2.2:1 Max (50 Ohm System)
Power Supply: ±12 to ±15 VDC @ ±100 mA Max
Temp Sensor: 10 mV/°C, 3.0 V @ 25 °C
No. Control Bits: 12 Bit TTL
Control & Power Connector: DB-37P, SUB-D Multi-Pin
RF Connectors: SMA Female
Size: 4.25" x 3.5" x 1.0"
Finish: Painted Blue
Weight: 500 g Max
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): +10 °C to +50 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202F, METHOD 103B COND. B
Shock: MIL-STD-202F, METHOD 213B COND.B
Vibration: MIL-STD- 202F, METHOD 204D COND. B
Altitude: MIL-STD- 202F, METHOD 105C COND. B
Temperature Cycle: MIL-STD- 202F, METHOD 107D COND. A
