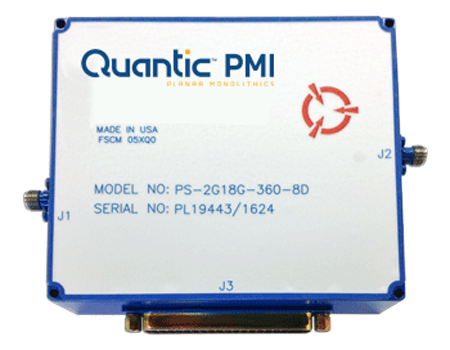

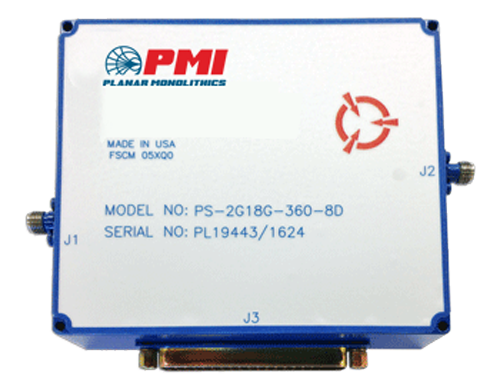

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 18 dB Max |
|---|
| Insertion Loss - Measured (dB): | 18 dB Max - Measured 17.29 dB |
|---|
| Phase Shift Range: | 360° |
|---|
| Switching Speed: | 500 ns Max - Measured 410 ns |
|---|
| Control Slopes: | Linear |
|---|
| Phase Vs Frequency: | ±15° Typ |
|---|
| RF Input Power: | 20 dBm CW, 1 W Max |
|---|
| VSWR: | 2.2:1 Max - Measured 1.79:1 (50 Ohm System) |
|---|
| Power Supply: | ±12 to ±15 VDC @ 100 mA Max |
|---|
| No. Control Bits: | 8 Bit TTL |
|---|
| Control & Power Connector: | DC-37P, Sub Miniature D Multi-Pin |
|---|
| RF Connectors: | SMA Female |
|---|
| Size: | 4.25" x 3.50" x 1.0" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -10 ºC to +60 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
|---|
