PS-2G18G-360-8D-OPT4G16G Preliminary
8 Bit Vector Phase Shifter
Quantic PMI Model PS-2G18G-360-8D-OPT4G16G is a 2 to 18 GHz, 8 Bit, Vector Phase Shifter making it ideal for frequency translation where continuous monotonic phase shifting is required. This model also features high speed switching and typically lower than 60 dB harmonic distortion. Housing size is 4.25" x 3.50" x 1.0" with a DC-37P subminiature D multi-pin connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 4 to 16 |
| Frequency Min (GHz): | 4 |
| Frequency Max (GHz): | 16 |
| Insertion Loss (dB): | 18 dB Max |
| Phase Shift Range: | 360° |
| Switching Speed: | 500 ns Max |
| Logic: | 8 Bit TTL Compatible |
| Control Slopes: | Linear |
| Phase Vs Frequency: | ±15° Typ |
| RF Input Power: | 20 dBm CW, 1 W Max |
| VSWR: | 2.2:1 Max (50 Ohm System) |
| Power Supply: | ±12 to ±15 VDC @ 100 mA Max |
| No. Control Bits: | 8 Bit TTL |
| Control & Power Connector: | DC-37P, Subminiature D Multi-Pin |
| RF Connectors: | SMA Female |

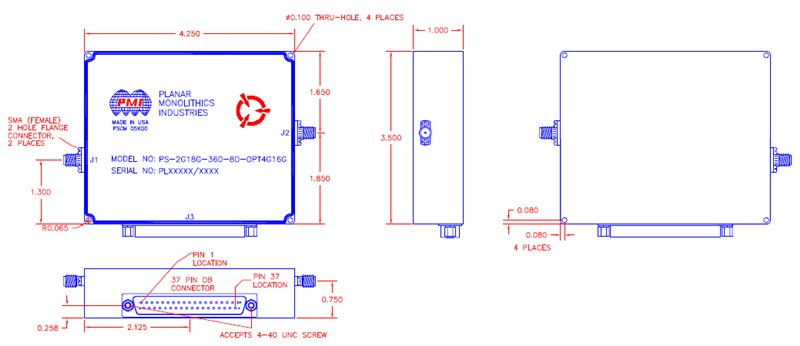

| Size: | 4.25" x 3.50" x 1.0" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -10 ºC to +60 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
