PS-2G6G-8B-SFF Active

8 Bit Digital Phase Shifter

PS-2G6G-8B-SFF
Product Feature

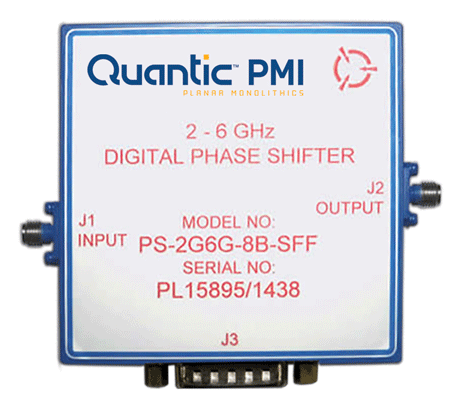

Quantic PMI Model PS-2G6G-8B-SFF is a 8 Bit Digital Phase Shifter that operates over the 2 to 6 GHz frequency range that offers 360° of phase shift having a LSB of 1.4° with an insertion loss is 10.5 dB typical and a typical phase accuracy of ±0.5°. Housing measures 3.25" x 3.25" x 0.94" with a 15 Pin subminiature D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 2 to 6
Frequency Min (GHz): 2
Frequency Max (GHz): 6
Insertion Loss (dB): 10.5 dB Typ
Insertion Loss - Measured (dB): 10.5 dB Typ - Measured 8.0 dB
Phase Shift Range: 360°
Amplitude Error: ±1 dB Typ
Switching Speed: 500 ns Max
Phase Accuracy: ±0.5° Typ
RF Input Power: 0 dBm Max
Power Supply: +15 VDC, -15 VDC
No. Control Bits: 8 Bit TTL
Control & Power Connector: 15 Pin Sub-D Male
(Mating connector supplied)
RF Connectors: SMA Female
Size: 3.25" x 3.25" x 0.94"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
