PS-360-2832-5-292FF Preliminary
Digital Phase Shifter

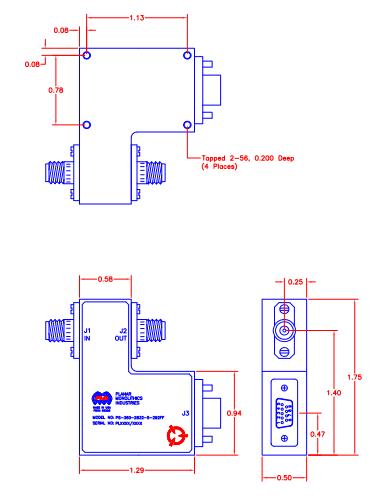

Quantic PMI Model PS-360-2832-5-292FF is a 28 to 32 GHz Digitally Controlled Phase Shifter with Capability for Phase Shifting from 0 to 349.75˚ Logic Input Lines allow various phase shift with an LSB of 11.25˚. Housing size is 1.29" x 1.75" x 0.5" with a 9 Pin subminiature D connector for power/control and 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 28 to 32 |
| Frequency Min (GHz): | 28 |
| Frequency Max (GHz): | 32 |
| Insertion Loss (dB): | 12 dB Max |
| Phase Shift Range: | 348.75° |
| Switching Speed: | 500 ns Max |
| Step Size (LSB): | 11.25° |
| VSWR: | 2.0:1 Max |
| Power Supply: | +15 VDC @ 90 mA Max, -15 VDC @ 60 mA Max |
| No. Control Bits: | 5 Bit TTL |
| Control & Power Connector: | 9 Pin TTL Thru Sub-D Multipin |
| RF Connectors: | 2.92mm Female |
| Size: | 1.29" x 1.75" x 0.5" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
