PS-360-8D5G11G-8-SFF-LVT Active
8 Bit Digital Phase Shifter

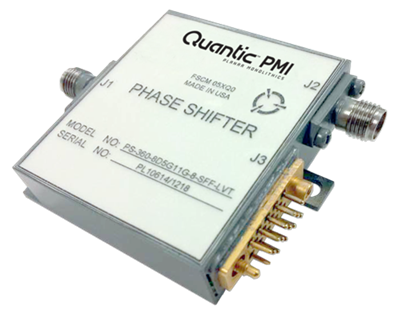

Quantic PMI Model PS-360-8D5G11G-8-SFF-LVT is a 8.5 to 11 GHz, 8 Bit Digitally controlled phase shifter with the capability of phase shift ranges from 0 to 360°, resolution of 1.41° and controlled by 8, low voltage TTL control lines. This model has a insertion loss of 8 dB, phase accuracy of ±8.5°. and a phase flatness of ±4° over any 1 GHz within the operating frequency range. Typical PM/AM is ±1.5 dB and the switching speed is <100 ns. Housing measures 1.85" x 1.75" x 0.5" with a 14-Pin Male Hermetic Connector IAW MIL-C-28748 for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 8.5 to 11 |
| Frequency Min (GHz): | 8.5 |
| Frequency Max (GHz): | 11 |
| Insertion Loss (dB): | 8 dB Typ |
| Insertion Loss - Measured (dB): | 8 dB Typ, 12 dB Max |
| Phase Shift Range: | 360° |
| Switching Speed: | 100 ns Typ, 500 ns Max (Digital Delay + RF Envelope Rise / Fall Time) |
| Spurious Signals: | -130 dBm Max (No RF input or control updates) |
| Phase Flatness: | ±4° Typ, ±12° Max (Over any 1GHz within the passband) |
| Phase Accuracy: | ±8.5° Typ, ±12° Max |
| Step Size (LSB): | 1.41° |
| PM / AM: | ±2 dB Max |
| Operating Power: | 13 dBm Max |
| Survival Power: | 30 dBm Max |
| VSWR: | 2.0:1 Max |
| Power Supply: | +15 VDC @ 30 mA Typ, -15 VDC @ 20 mA Typ |
| No. Control Bits: | 8 Bit TTL |
| Control & Power Connector: | 14-Pin Male Hermetic Connector IAW MIL-C-28748 |
| RF Connectors: | SMA Female |
| Size: | 1.85" x 1.75" x 0.5" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 0 ºC to +85 ºC |
| Temperature (Storage): | -20 ºC to +85 ºC |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
