PS-360-8G10G-8-SFF-LVT-15D Preliminary
Digital Phase Shifter

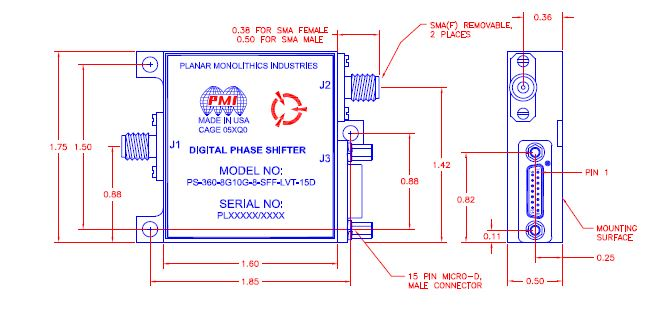

Quantic PMI Quantic PMI Model PS-360-8G10G-8-SFF-LVT-15D is an 8 to 10 GHz, 8 Bit Digitally controlled phase shifter with capability for phase shifting from 0° to 360°, with resolution as fine as 1.41°. Housing measures 1.85" x 1.75" x 0.5" with a 15 Pin subminiature D connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 8 to 10 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 10 |
| Insertion Loss (dB): | 10 dB Typ, 12 dB Max |
| Phase Shift Range: | 360° Min |
| Switching Speed: | 500 ns Max (Digital Delay + RF Envelope Rise/Fall Time) |
| Spurious Signals: | -130 dBm Max (No RF input or Control Updates) |
| Phase Flatness: | ±12° Max (Over any 1 GHz in the Passband) |
| Phase Accuracy: | ±9° Typ, ±12° Max |
| Step Size (LSB): | 1.41° |
| PM / AM: | ±2 dB Max |
| Operating Power: | 13 dBm Max |
| Survival Power: | 30 dBm Max |
| VSWR: | 2.0:1 Max |
| Power Supply: | +15 VDC ± 5% @ 250 mA Max, -15 VDC ± 5% @ 20 mA Max |
| No. Control Bits: | Positive Binary 8 Bit LVTTL |
| Control & Power Connector: | 15 Pin Male Micro-D (Mating Connector Shipped with Unit) |
| RF Connectors: | SMA Female |
| Size: | 1.85" x 1.75" x 0.5" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 0 ºC to +85 ºC |
| Temperature (Storage): | -20 ºC to +85 ºC |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
