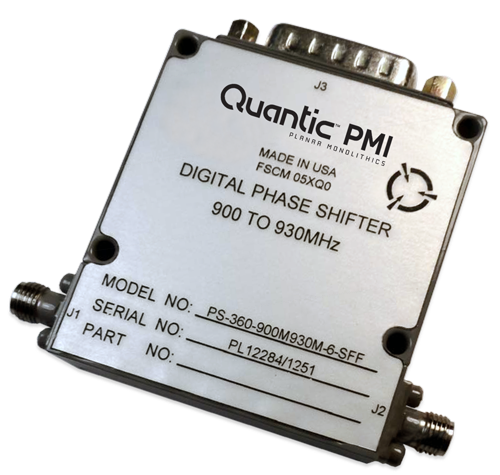

PS-360-900M930M-6-SFF Active
Digital Phase Shifter
Quantic PMI Model PS-360-900M930M-6-SFF is a 0.9 to 0.93 GHz, 6 Bit digitally controlled phase shifter having a LSB of 5.6° with an insertion loss is 7 dB, 7.5 dB maximum with a VSWR of 2:1. This is a high speed phase shifter that can switch from one phase state to the next in 250 ns. This model operates at input power levels up to 14 dBm CW and on a DC power supply of ±15 VDC. Housing size is 2.0" x 2.1" x 0.5" with a 15 Pin subminiature D connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.9 to 0.93 |
| Frequency Min (GHz): | 0.9 |
| Frequency Max (GHz): | 0.93 |
| Insertion Loss (dB): | 7 dB Typ |
| Insertion Loss - Measured (dB): | 7 dB Typ, 7.5 dB Max |
| Phase Shift Range: | 354.4° |
| Switching Speed: | 250 ns Typ, 1 µs Max |
| Step Size (LSB): | 5.6° |
| Operating Power: | 14 dBm CW Max |
| VSWR: | 2.0:1 Typ |
| Power Supply: | +15 VDC @ 35 mA, -15 VDC @ 0 mA |
| No. Control Bits: | 6 Bit TTL |
| Control & Power Connector: | 15 Pin Sub-D Male |
| RF Connectors: | SMA Female |
| Size: | 2.0" x 2.1.0" x 0.5" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 0 ºC to +50 ºC |
| Temperature (Storage): | -40 ºC to +85 ºC |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
