PS-360-DC-3 OPT 618-15D-12B

PMI Model No. PS-360-DC-3 OPT 618-15D-12B is a 12-bit, high speed digitally controlled phase shifter operating from the 6.0 to 18.0GHz. frequency range. This unit has a typical insertion loss of 10dB and a VWSR of 2.0:1 max and a phase shift range of 360 degrees. It is supplied with removable SMA(F) connectors in a housing measuring 1.6" x 1.75" x 0.5".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 6.0 to 18.0 GHz
Frequency Min: 6 GHz
Frequency Max: 18 GHz
Control Bits: 12 Bit TTL
Insertion Loss: 12.0dB Max
Insertion Loss (Measured): 12.0dB Max. 10.0dB typ
Phase Shift Range: 360°
Switching Speed: 50% TTL to within 1us max (10° of Final Phase Value)
Phase Accuracy: ±15° Max (Peak to Peak)
Power Handling Capability: Without Degradation +10 dBm, Survival Power +20 dBm
VSWR: 2.0:1
Harmonics: -25 dBc
Power Supply: +5VDC (±5%) @ 115mA, -12 to -15VDC @ 20mA

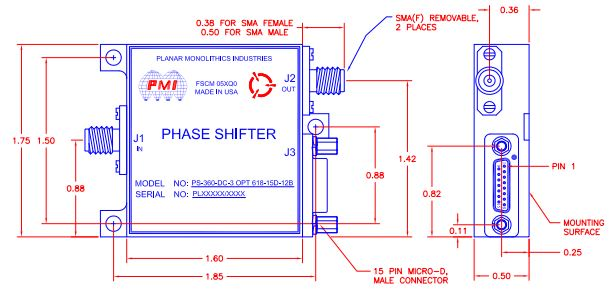

Size: 1.6" x 1.75" x 0.5" *Excluding Mounting Holes & Connector
RF Connectors: SMA (F)
Control & Power Connector: 15 Pin Micro-D
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202G, Method 103B Cond B (96 Hrs at 95%)
Shock: MIL-STD-202G, Method 213B Cond B (75 G, 6Msec)
Vibration: MIL-STD-202G, Method 204D Cond B (0.06" Double Amplitude or 15G, Whichever is less)
Altitude: MIL-STD-202G, Method 105C Cond B (50,000 Ft)
Temperature Cycle: MIL-STD-202G, Method 107D Cond A
