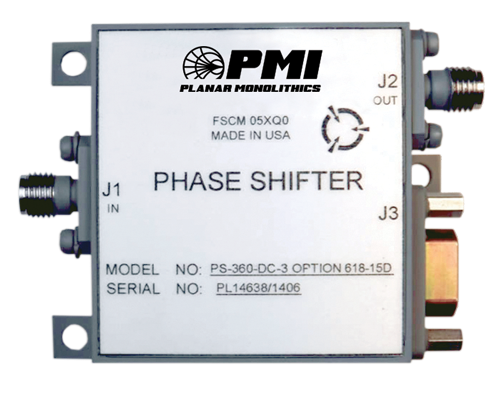

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range: | 6.0 to 18.0 GHz |
|---|
| Frequency Min: | 6 GHz |
|---|
| Frequency Max: | 18 GHz |
|---|
| Control Bits: | 8-Bit TTL |
|---|
| Insertion Loss: | 12.0 dB Max |
|---|
| Insertion Loss (Measured): | 12.0 dB Max 10.0 dB Typ - Measured 10.5 dB |
|---|
| Phase Shift Range: | 360° Typ |
|---|
| Switching Speed: | 50% TTL to within 50 ns Max (10° of Final Phase Value) |
|---|
| Phase Accuracy: | ±15° Max (Peak to Peak) - Measured ±6.6° |
|---|
| PM / AM: | ±2.5 dB Max - Measured ±1.2 dB |
|---|
| Translation Rate: | 0 to 500 kHz - Measured 500 KHz Min |
|---|
| Carrier Suppression: | 18 dB - Measured 26 dB |
|---|
| Side Band Suppression: | 15 dB - Measured 22 dB |
|---|
| Power Handling Capability: | Without Degradation +10 dBm, Survival Power +20 dBm |
|---|
| VSWR: | 2.0:1 - Measured 2.0:1 |
|---|
| Harmonics: | -25 dBc |
|---|
| Power Supply: | +5 VDC (±5%) @ 115 mA - Measured 82 mA
-12 to -15V DC @ 20 mA - Measured 20 mA |
|---|
| Size: | 1.6" x 1.75" x 0.5" *Excluding Mounting Holes & Connector |
|---|
| RF Connectors: | SMA (F) |
|---|
| Control & Power Connector: | 15 Pin Micro-D |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond B (96 Hrs at 95%) |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond B (75 G, 6Msec) |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond B (0.06" Double Amplitude or 15G, Whichever is less)(0.06" Double Amplitude or 15G, Whichever is less) |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond B (50,000 Ft) |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond A |
|---|
