PS-360-DC-3 OPTION 618-15D-10BIT-TS Preliminary

10 Bit, Digitally Controlled Phase Shifter

PS-360-DC-3 OPTION 618-15D-10BIT-TS
Product Feature

Quantic PMI Model PS-360-DC-3 OPTION 618-15D-10BIT-TS is a 10 Bit, digitally controlled Phase Shifter operating over the 6 to 18 GHz frequency range. This high-speed phase shifter has a range of 360°; an insertion loss of 12 dB; an accuracy of ±15° Max (Peak to Peak); a carrier suppression of 18 dB; a side band suppression of 15 dB and a power handling of +20 dBm. This Phase Shifter has SMA female connectors and is 1.85" x 1.75" x 0.50".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 6 to 18
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Insertion Loss (dB): 12 dB Max, 10 dB Typ
Phase Shift Range: 360° (256 Steps)
Switching Speed: 50% TTL to within 500 ns Max (10° of final phase value)
Translation Rate: 0 to 500 kHz
Carrier Suppression: 18 dB
Side Band Suppression: 15 dB
Power Handling Capability: + 10 dBm (Without degradation)
20 dBm (With degradation)
VSWR: 2.0: 1 Max
Harmonics: -25 dBc
Power Supply: +5 VDC (±5%) @ 115 mA
-12 to -15 VDC @ 20 mA
Temp Sensor: 10mV / °C, 3.0 V @ 25 °C
Accuracy: ±15° Max (Peak to Peak)
No. Control Bits: 10 Bit
Control & Power Connector: 15 Pin Micro-D
RF Connectors: SMA Female

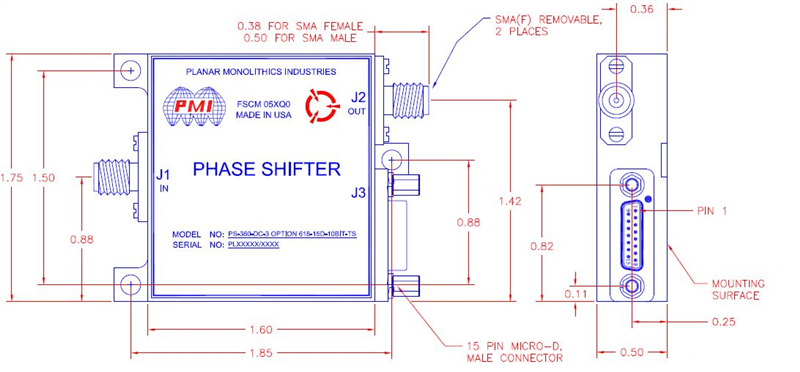

Size: (L) 1.60 X (W) 1.75" X (H) 0.50"
Finish: Blue Epoxy Polyimide Coating IAW MIL-C-22750, Type I Over Epoxy Polyimide Primer IAW MIL-P-23377, Type I, Class 1 OR 3.
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 °C to +125 °C
Humidity: MIL-STD-202G, METHOD 103B COND. B (96 HRS AT 95%)
Shock: MIL-STD-202G, METHOD 213B COND. B (75 G, 6 MSEC)
Vibration: MIL-STD-202G, METHOD 204D COND. B (0.06" DOUBLE AMPLITUDE OR 15G, WHICHEVER IS LESS)
Altitude: MIL-STD-202G, METHOD 105C COND. B (50, 000 FT.)
Temperature Cycle: MIL-STD-202G, METHOD 107D COND. A
