| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 6.25 ± 0.25 |
|---|
| Frequency Min (GHz): | 6.25 |
|---|
| Frequency Max (GHz): | 6.25 |
|---|
| Insertion Loss (dB): | 5 dB Typ |
|---|
| Phase Shift Range: | 360° Typ |
|---|
| Switching Speed: | 50% TTL to within 50ns Max
(10° of final phase value) |
|---|
| Phase Accuracy: | ±5° Max (Peak to Peak) |
|---|
| PM / AM: | ±2.5 dB Max |
|---|
| Translation Rate: | 0 to 500 kHz |
|---|
| Carrier Suppression: | 18 dB |
|---|
| Side Band Suppression: | 15 dB |
|---|
| Power Handling Capability: | Without Degradation 10 dBm,
Survival Power 20 dBm |
|---|
| VSWR: | 2.0:1 Max |
|---|
| Harmonics: | -25 dBc |
|---|
| Power Supply: | +5 VDC ± 5% @ 115 mA,
-12 to -15 VDC @ 20 mA |
|---|
| No. Control Bits: | 8 Bit TTL |
|---|
| Control & Power Connector: | 15 pin Micro-D |
|---|
| RF Connectors: | SMA Female |
|---|

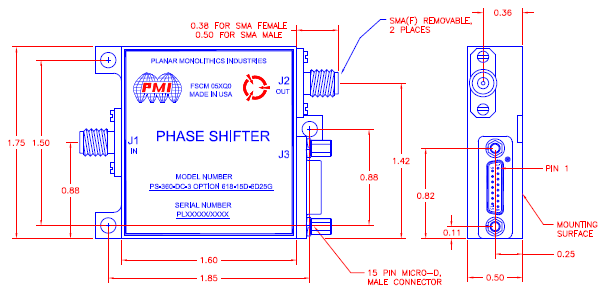

| Size: | 1.8" x 1.75" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202G, Method 103B Cond. B (96 HRS at 95%) |
|---|
| Shock: | MIL-STD-202G, Method 213B Cond. B (75 G, 6 MSEC) |
|---|
| Vibration: | MIL-STD-202G, Method 204D Cond. B (0.06" double amplitude or 15G, whichever
is less) |
|---|
| Altitude: | MIL-STD-202G, Method 105C Cond. B
(50, 000 FT.) |
|---|
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
|---|
