PS-360-DC-3 OPTION 713-15D

PMI Model No. PS-360-DC-3 OPTION 713-15D is an 8-bit, Digitally Controlled Phase Shifter operating from the 7.0 to 13.0 GHz. frequency range. This unit has a typical insertion loss of 10 dB and a VSWR of 2.0:1 max. It is supplied with removable SMA (F) connectors in a housing measuring 1.6" x 1.75" x 0.5".

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range: 7.0 to 13.0 GHz
Frequency Min: 7 GHz
Frequency Max: 13 GHz
Control Bits: 8 Bit TTL
Insertion Loss: 12.0 dB Max. 10.0 dB Typ
Phase Shift Range: 360° in 256 Steps
Switching Speed: 50% TTL to within 500ns Max(10° of Final Phase Value)
PM / AM: ±2.5 dB Max
Translation Rate: 0 to 500 kHz
Carrier Suppression: 18 dB
Side Band Suppression: 15 dB
Survival Power: +20 dBm
Power Handling Capability: +10 dBm
VSWR: 2.0:1
Harmonics: -25 dBc
Power Supply: +5 VDC (±5%) @ 115 mA, -12 to -15V DC @ 20 mA

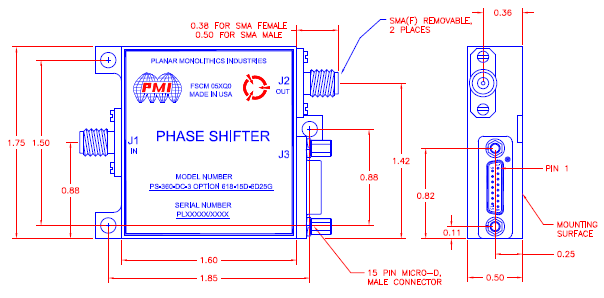

Size: 1.6" x 1.75" x 0.5"*Excluding Mounting Holes & Connector
RF Connectors: SMA (F)
Control & Power Connector: 15 Pin Micro-D
Environmental Ratings:
Temperature (Operating): -55 °C to 85 °C Operating
Temperature (Storage): -65 °C to 125 °C Storage
Humidity: MIL-STD-202G, Method 103B Cond B (96 Hrs at 95%)
Shock: MIL-STD-202G, Method 213B Cond B (75 G, 6Msec)
Vibration: MIL-STD-202G, Method 204D Cond B(0.06" Double Amplitude or 15G, Whichever is less)
Altitude: MIL-STD-202G, Method 105C Cond B (50,000 Ft)
Temperature Cycle: MIL-STD-202G, Method 107D Cond A
