PS-4G12G-360-12B-SFF Preliminary

12 Bit Vector Phase Shifter

PS-4G12G-360-12B-SFF
Product Feature

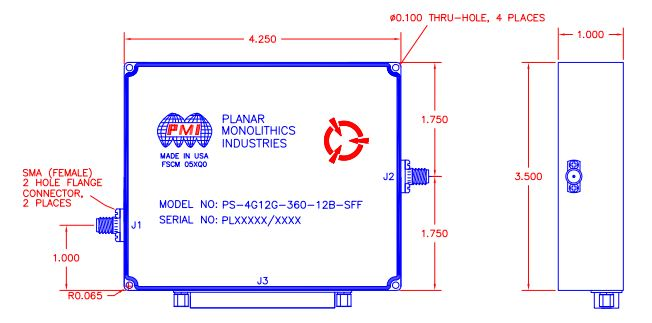

Quantic PMI Model PS-4G12G-360-12B-SFF is a 4 to 12 GHz, 12 Bit, Vector Phase Shifter making it ideal for frequency translation where continuous monotonic phase shifting is required. This model features high speed switching of 500ns and typically lower than 60 dB harmonic distortion. Housing size is 4.25" x 3.50" x 1.0" with DC-37P, Sub Miniature D Multi-Pin connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 4 to 12
Frequency Min (GHz): 4
Frequency Max (GHz): 12
Insertion Loss (dB): 16 dB Max
Phase Shift Range: 360° Typ
Switching Speed: 500 ns Max
Control Slopes: Linear
Phase Vs Frequency: ±15° Typ
RF Input Power: 20 dBm CW, 1 W Max
VSWR: 2.2:1 Max (50 Ohm)
Power Supply: ±12 to ±15 VDC @ 100 mA Max
No. Control Bits: 12 Bit TTL
Control & Power Connector: DC-37P, Sub Miniature D Multi-Pin
RF Connectors: SMA Female
Size: 4.25" x 3.50" x 1.0"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -10 ºC to +60 ºC
Temperature (Storage): -65 ºC to +125 ºC
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
