PS-500M2G-10B-SFF Active

Digitally Controlled Analog Phase Shifter

PS-500M2G-10B-SFF
Product Feature

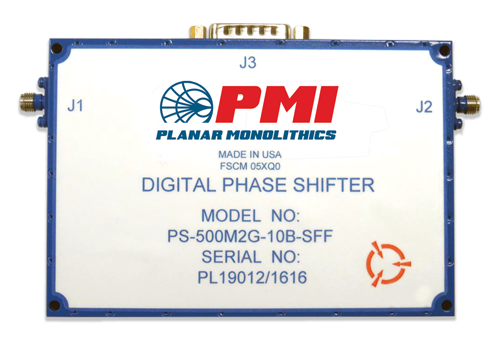

PMI Model PS-500M2G-10B-SFF is a 0.5 to 2 GHz digitally controlled analog phase shifter with capability for phase shifting from 0° to 360°. The unit consists of an analog phase shifter, a digital phase shifter, and a digital-to-analog converter. Ten logic input lines allow 1024 discrete values of phase. Package size is 4.95" x 3.38" x 1.0" with a 15 Pin subminiature D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 0.5 to 2
Frequency Min (GHz): 0.5
Frequency Max (GHz): 2
Insertion Loss (dB): 13 dB Max
Insertion Loss - Measured (dB): 13 dB Max - Measured 8.2 dB
Phase Shift Range: 360° Typ
Amplitude Error: ±1 dB Max - Measured ±0.23 dB
Phase Shift Error: ±5° Max - Measured +3.4°/ -2.6°
Switching Speed: 500 ns Max - Measured <300 ns
RF Input Power: 0 dBm Max
Power Supply: +15 VDC @ 250 mA Typ
-15 VDC @ 20 mA Typ - Measured 40 mA
No. Control Bits: 10 Bit TTL
Control & Power Connector: 15 Pin Sub-D Male
RF Connectors: SMA Female
Size: 4.95" x 3.38" x 1.0"
Weight: 14 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
