PS-500M2G-10B-SFF-E Preliminary

Digital Phase Shifter

PS-500M2G-10B-SFF-E
Product Feature

Quantic PMI Model PS-500M2G-10B-SFF-E is a 0.4 to 2 GHz digitally controlled analog phase shifter with capability for phase shifting from 0° to 360° that consists of an analog phase shifter and a digital phase shifter and a digital-to-analog converter. Ten logic input lines allow 1024 discrete values of phase. Package size is 4.95" x 3.38" x 1.0" with a 15 Pin subminiature D connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 0.4 to 2
Frequency Min (GHz): 0.4
Frequency Max (GHz): 2
Insertion Loss (dB): 13 dB Max
Phase Shift Range: 360° Typ
Amplitude Error: ±1 dB Max
Phase Shift Error: ±5° Max
Switching Speed: 500 ns Max
Power Supply: +15 VDC @ 250 mA Typ,
-15 VDC @ 20 mA Typ
No. Control Bits: 10 Bit TTL
Control & Power Connector: 15 Pin Sub-D Male
RF Connectors: SMA Female

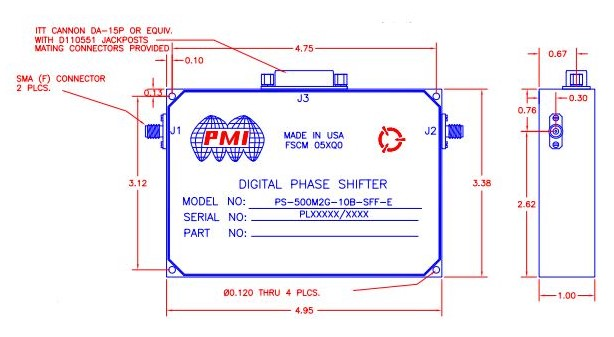

Size: 4.95" x 3.38" x 1.0"
Finish: Painted Blue
Weight: 14 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
