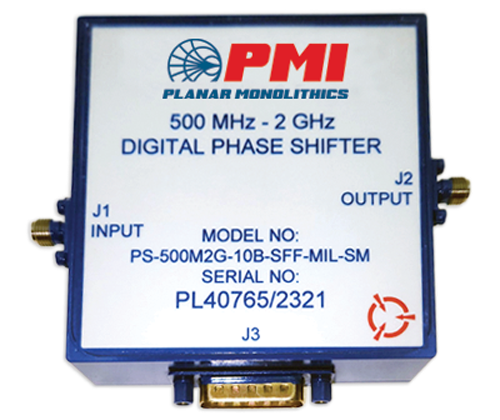

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 0.5 to 2 |
|---|
| Insertion Loss (dB): | 13 dB Max |
|---|
| Phase Shift Range: | 360° Typ |
|---|
| Amplitude Error: | ±1.0 dB Max |
|---|
| Phase Shift Error: | ±5° Max |
|---|
| Spurious: | -60 dBc Max |
|---|
| RF Input Power: | 5 dBm Max |
|---|
| Power Supply: | +15 VDC @ 250 mA Typ, 300 mA Max
-15 VDC @ 20 mA Typ, 100 mA Max |
|---|
| No. Control Bits: | 10 Bit TTL |
|---|
| Speed: | 500 ns Max |
|---|
| Control & Power Connector: | 15 Pin Subminiature D (Male)
(Mating Connector Supplied) |
|---|
| RF Connectors: | SMA Female |
|---|
| Size: | 3.25" x 3.25" x 0.84" |
|---|
| Finish: | Blue Epoxy Polyimide Coating IAW MIL-C-22750, Type I Over Epoxy Polimide Primer IAW MIL-P-23377, Type I, Class 1 or 3. |
|---|
| Weight: | 10 oz. Max |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -20 °C to +85 °C |
|---|
| Temperature (Storage): | -40 °C to +85 °C |
|---|
| Humidity: | MIL-HDBK-5400 4.6.2.4 NOTE: (Operating) Relative Humidity: 90% max with non-condensation. **Condensation control is implemented by the system. |
|---|
| Shock: | MIL-HDBK-5400 4.6.2.6 Only, Sawtooth wave 20G, 11 ms (MIL-STD-810 method 516.5 procedure I ) |
|---|
| Vibration: | MIL-HDBK-5400 4.6.2.5 Only, Jet Aircraft
Functional test: W1 = 0.04G^2/Hz, W2 = 0.03G^2/Hz, Overall = 6.86 Grms: 0.5 Hr x 2 times x 3 directions
Endurance test: W1 =0.04G^2/Hz, W2=0.166G^2/Hz.Overall= 15.07 Grms: 3 Hr x 3 directions. |
|---|
| Altitude: | MIL-HDBK-5400 Class 1
Note: Upper limit of altitude shall be 10, 500 ft. |
|---|
