PS-500M2G-360-10B Preliminary
Digital Phase Shifter

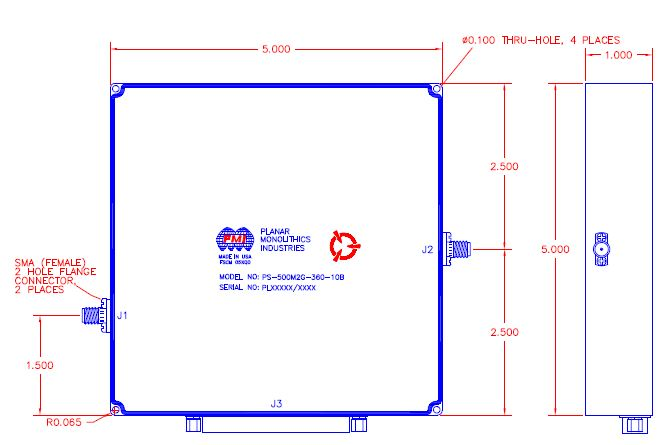

Quantic PMI Model PS-500M2G-360-10B is a 0.5 to 2 GHz, 10-bit, phase shifter making it ideal for frequency translation where continuous monotonic phase shifting is required. This model also features high speed switching, and typically lower than 50 dB harmonic distortion. Package size is 5.0" x 5.0" x 1" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 0.5 to 2 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 2 |
| Insertion Loss (dB): | 13 dB Max |
| Phase Shift Range: | 360° |
| Switching Speed: | 500 ns Max |
| Control Slopes: | Linear |
| Phase Vs Frequency: | ±15.0° Typ |
| RF Input Power: | 10 dBm CW, 1 W Max |
| VSWR: | 2.0:1 Max (50 Ohm system) |
| Power Supply: | ±12 to ±15 VDC @ ±100 mA Max |
| No. Control Bits: | 10 Bit |
| Control & Power Connector: | DC-37P, Sub-minature D Multi-pin |
| RF Connectors: | SMA Female |
| Size: | 5.0" x 5.0" x 1.0" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -10 °C to +60 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202G, METHOD 103B COND. B |
| Shock: | MIL-STD-202G, METHOD 213B COND. B |
| Vibration: | MIL-STD-202G, METHOD 204D COND. B |
| Altitude: | MIL-STD-202G, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202G, METHOD 107D COND. A |
