PS-618-360-14B-SFF OPT1518 Preliminary

Digital Phase Shifter

PS-618-360-14B-SFF OPT1518
  • PS-618-360-14B-SFF OPT1518
  • PS-618-360-14B-SFF OPT1518
  • PS-618-360-14B-SFF OPT1518
Product Feature

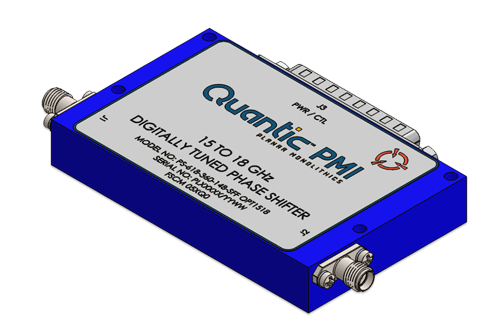

Quantic PMI Model PS-618-360-14B-SFF OPT1518 is a digitally tuned phase shifter optimized over the 15 to 18 GHz frequency range with a tuning range of 0 to 360°. This unit is tuned using twelve TTL control bits.  Housing size is 3.25" x 2.0" x 0.5" with a 25 Pin subminiature D male connector for power/control and SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 6 to 18, optimized for 15 to 18
Frequency Min (GHz): 6
Frequency Max (GHz): 18
Insertion Loss (dB): 12 dB Max
Phase Shift Range: 360° Nom (0 to 360° - 1 LSB)
Switching Speed: 500 ns Max
Logic: TTL
Phase Accuracy: ± 10° Typ, ± 15° Max
Survival Power: 20 dBm Max
VSWR: 2:1 Max (J1 and J2)
Power Supply: +12 V @ 250 mA Max
-12 V @ 100 mA Max
No. Control Bits: 14 Bits
Control & Power Connector: 25 Pin D-SUB Male
RF Connectors: SMA Female
Size: 3.25" x 2.0" x 0.5"
Finish: Painted blue, mounting surface gold plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): 10 °C to +30 °C (Operating)
Temperature (Storage): -40 °C to +85 °C (Storage)
