PS-812-360-14B-SFF OPT10D27 Active

Digitally Tuned Phase Shifter

Product Feature

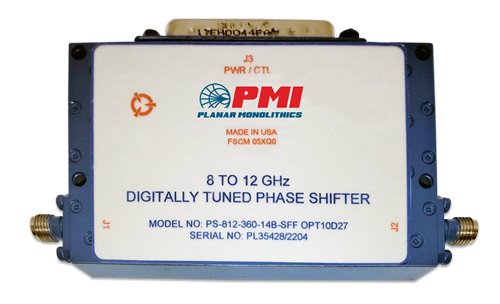

Quantic PMI Model No. PS-812-360-14B-SFF OPT10D27 is a high resolution Digitally Tuned Phase Shifter that is designed for phased array antenna element applications and operates from 8.0 to 12.0 GHz, optimized for 10.27 GHz.  This unit has a survival input power level of +30 dBm; an insertion loss of 12 dB; tuned using 14-bit (+3.3 V RS-422 Control) through a 44-Pin High-I Density D-Sub male connector and has SMA female connectors in a housing of 3.25" x 2.00" x 0.50".

Product Specifications

General Parameters:
Status: Active
Frequency Range: 8 - 12 GHz, Optimized for 10.27 GHz
Frequency Min: 8 GHz
Frequency Max: 12 GHz
Control Bits: 14 Bits, +3.3 V RS-422 Differential (+5 V Tolerant)
Insertion Loss: 12 dB Max
Phase Shift Range: 360°
Switching Speed: 500 ns Max
Phase Accuracy: +/- 3° Max (10.27 +/- 0.5 GHz)
Step Size (LSB): 0.022°
Operating Power: +20 dBm
Survival Power: +30 dBm Max
VSWR: 2:1 Max (8-12 GHz),
1.5:1 Max (10.27 +/- 0.1 GHz)
Power Supply: +12 V @ 250 mA Max,
-12 V @ 100 mA Max
Size: 3.25” x 2.00” x 0.50”
RF Connectors: SMA (F)
Control & Power Connector: 44 Pin High-I Density D-Sub (M)
Finish: Painted Blue, Mounting Surface Gold Plated
Environmental Ratings:
Temperature (Operating): +10 °C to +30 °C
(Other Temperature Ranges from -40 °C to +85 °C available)
Temperature (Storage): -40 °C to +85 °C
