PS-85M4G-8B-SFF

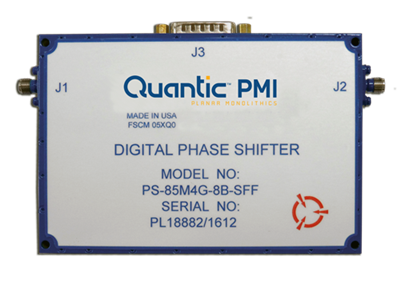

PMI Model No. PS-85M4G-8B-SFF is a 0.085 to 4.0 GHz, Digitally Controlled Analog Phase Shifter with capability for phase shifting from 0° to 360°. The unit consists of an analog phase shifter and a digital to analog converter. Eight logic input lines allow 256 discrete values of phase.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 0.085 to 4.0 GHz
Frequency Min: 0.085 GHz
Frequency Max: 4 GHz
Control Bits: 8-Bit TTL
Insertion Loss: 13 dB max.
Insertion Loss (Measured): 13 dB max. - Measured 10.3 dB
Phase Shift Range: 360° typ
Amplitude Error: ±1.0 dB max. - Measured ±1.6 dB
Phase Shift Error: ±10° max. - Measured +11.4°/ -11°
Switching Speed: 500 ns max. - Measured <300 ns
Power Supply: +15 V @ 250 mA typ - Measured 251 mA, -15 V @ 20 mA typ - Measured 38 mA
Size: 4.95" x 3.38" x 1.00"
RF Connectors: SMA (F)
Control & Power Connector: 15 Pin Sub-D (male)
Finish: Painted Blue
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
