PS-90-1020-101F

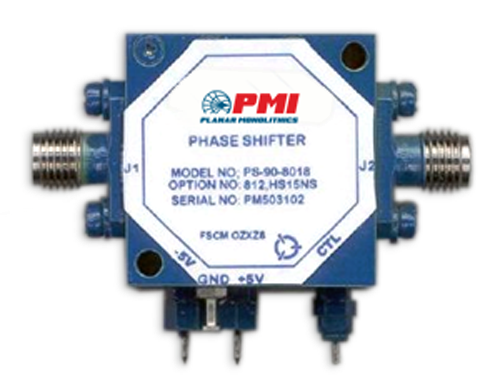

Model PS-90-1020 Options 101F, VSWR is a 0 to 180 Degree Bi-Phase Modulator / Phase Shifter Operating over a Frequency Range of 1 to 1.12GHz with an Insertion Loss of

Product Specifications

General Parameters:
Status: Active
Frequency Range: 1.0 to 1.12 GHz
Frequency Min: 1 GHz
Frequency Max: 1.12 GHz
Phase States: 0° / 180°
Insertion Loss: 2.0 dB Max
VSWR: 1.5:1
Control Type: TTL
Switching Time: 30 nS Maximum
Input Power: +20 dBm Operating, 0.5 Watt CW, 1 uS Pulse Widths Survival
Carrier Suppression: 15 dB, 20 dB Typical
Control: TTL (ECL is Available)
Power Supply: +5 vdc @ 75 mA Maximum, - 5 vdc @ 20 mA Maximum, Other Voltages Available
Size: 1.0" X 1.0" X 0.50", (Slim-Line Versions Available)
Weight: 2.0 oz.
Environmental Ratings:
Temperature (Operating): -40ºC to +85 ºC
Temperature (Storage): -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
