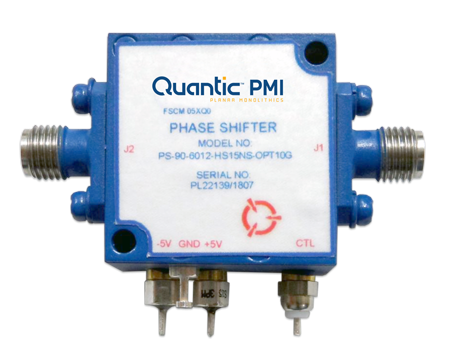

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 10 |
|---|
| Frequency Min (GHz): | 10 |
|---|
| Frequency Max (GHz): | 10 |
|---|
| Insertion Loss (dB): | 2.5 dB Typ, 3 dB Max |
|---|
| Phase States: | 0° / 180° |
|---|
| VSWR: | 2.0:1 Typ, 2.5:1 Max - Measured 1.9:1 |
|---|
| Control Type: | TTL |
|---|
| Modulation Rate: | 0.001 GHz |
|---|
| Speed: | 15 ns Typ On/Off - Measured 15 ns |
|---|
| Input Power: | 20 dBm |
|---|
| Input Power (Survival): | 0.5 W CW, 1 µs Pulse Width |
|---|
| Phase Shift Accuracy: | ±0° goal, ±1° Max - Measured ±.057° |
|---|
| Carrier Suppression: | 20 dB Typ |
|---|
| Power Supply: | +15 VDC @ 75 mA Max
-15 VDC @ 20 mA Max |
|---|
| RF Connectors: | SMA Female |
|---|
| Size: | 1.0" x 1.0" x 0.5" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 2 oz |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
