PS-90-810 Active

Bi-Phase Shifter / Modulator,

PS-90-810
Product Feature
Additional Documents

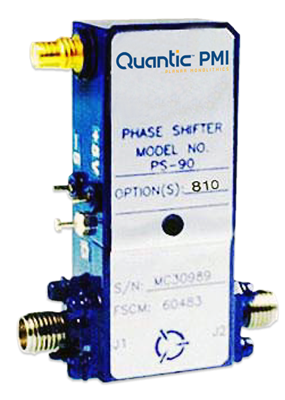

Quantic PMI Model PS-90-810 is a 0 to 180° Bi-Phase Shifter / Modulator, TTL Compatible with Low Insertion Loss, Low VSWR, High Speed and operates in the 8 to 10 GHz frequency range with an insertion loss of 3 dB and a switch time of 75 ns. This model features a compatible control with low amplitude and phase error. Package size is 1.97" x 0.79" x 0.53" with SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range (GHz): 8 to 10
Frequency Min (GHz): 8
Frequency Max (GHz): 10
Insertion Loss (dB): 2.5 dB Typ,
3 dB Max
Phase States: 0° / 180°
VSWR: 2.0:1 Typ (2.5:1 Max)
Control Type: TTL
Differential Phase Shift: ±90 or 180° ± 10%
Switching Time: Rise:- 20 ns Typ (25 ns Max),
Fall:- 10 ns Typ (15 ns Max)
Switching Speed Delay On: 60 ns Typ (75 ns Max)
Switching Speed Delay Off: 45 ns Typ (75 ns Max)
Input Power: 15 dBm Max
Input Power (Survival): 0.5 W
Carrier Suppression: 20 dB Typ (15 dB Min)
Control: TTL (ECL Available)
Power Supply: +5 VDC @ 75 mA Max,
-5 VDC @ 20 mA Max
RF Connectors: SMA Female (RF)
SMC Female (CTL)
Size: 1.97" x 0.79" X 0.54"
Weight: <1.50 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
