PS-90-810-OPT910 Preliminary

Miniature Bi-Phase Modulator/Phase shifter

PS-90-810-OPT910
Product Feature

Quantic PMI Model PS-90-810-OPT910 is a high speed 9 to 10 GHz frequency range, 0 to 180°, miniature, Bi-Phase Modulator/Phase shifter with TTL control logic (ECL logic is available) with an insertion loss of 3 dB and a switch time of 75 ns. This model features a compatible control with low amplitude and phase error. Package size is 1.97" x 0.79" x 0.53" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Frequency Range (GHz): 9 to 10
Frequency Min (GHz): 9
Frequency Max (GHz): 10
Insertion Loss (dB): 2.5 dB Typ,
3 dB Max
Phase States: 0° / 180°
VSWR: 2.0:1 Typ, 2.5:1 Max
Control Type: TTL
Differential Phase Shift: ±90º or ± 10º
Speed: 75 ns Typ On/Off
Input Power: 15 dBm
Input Power (Survival): 0.5 W CW, 1 µs Pulse Width
Carrier Suppression: 20 dB Typ
Control: TTL
Power Supply: +5 VDC @ 75 mA Max,
-5 VDC @ 20 mA Max
RF Connectors: SMA Female (RF)
SMA Female (CTL)

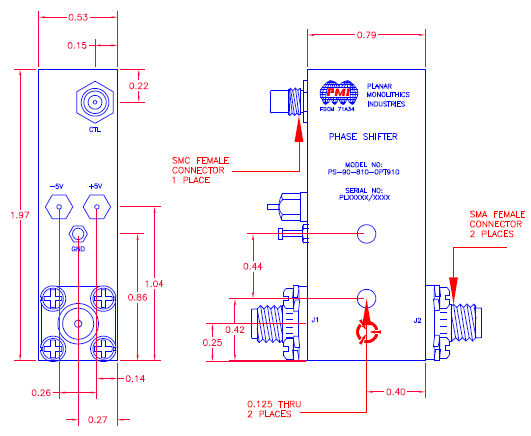

Size: 1.97" x 0.79" x 0.53"
Weight: 2 oz
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to +85 °C
Temperature (Storage): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
