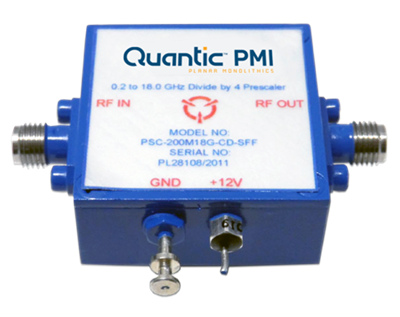

PSC-200M18G-CD-SFF Active
Divide-by-4 Prescaler
PMI Model PSC-200M18G-CD-SFF is a 0.5 to 18 GHz, wideband frequency divider with divide ratio of 4 with an output frequency range of 0.125 to 4.500 GHz, an output power of -3.32 dBm, and a SSB phase noise of -147 dBc/Hz. Model has SMA female connectors and has a package size is 1.25" x 1.25" x 0.563".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Input Frequency Range (GHz): | 0.5 to 18 |
| Input Frequency Min (GHz): | 0.5 |
| Input Frequency Max (GHz): | 18 |
| Output Frequency Range (GHz): | 0.125 to 4.5 |
| Fixed Divide Ratio: | 4 |
| Input Power Range: | 3 dBm Min, 5 dBm Typ, 10 dBm Max (0.5 to 1 GHz) -10 dBm Min, 0 dBm Typ, +10 dBm Max (1 to 2 GHz) -15 dBm Min, 0 dBm Typ, 10 dBm Max (2 to 12 GHz) -15 dBm Min, 0 dBm Typ, 3 dBm Max (12 to 16 GHz) -10 dBm Min, 0 dBm Max (16 to 18 GHz) |
| Output Power: | -1.5 dBm Typ |
| SSB Phase Noise, (100 KHz Offset): | -147 dBc / Hz Typ |
| DC Power Supply: | +9 VDC Min, +12 VDC Typ, +15 VDC Max |
| Supply Current: | 110 mA Typ, 125 mA Max |
| Connectors: | SMA Female |
| Size: | 1.250" x 1.250" x 0.563" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature: | -40 ºC to +85 ºC (Operating) -55 ºC to +100 ºC (Storage) |
