| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 25.5 to 27 |
|---|
| Frequency Min (GHz): | 25.5 |
|---|
| Frequency Max (GHz): | 27 |
|---|
| Insertion Loss (dB): | 9 dB Max |
|---|
| Phase Shift Range: | 360° |
|---|
| Switching Speed: | 200 ns Max |
|---|
| Step Size (LSB): | 1.4° |
|---|
| RF Input Power: | 10 dBm Max (Operating),
30 dBm Max (Survival) |
|---|
| VSWR: | 2.2:1 Max |
|---|
| Power Supply: | +12 to +15 VDC @ 100 mA |
|---|
| No. Control Bits: | 8 Bit TTL |
|---|
| Control & Power Connector: | 15 Pin Micro-D-Female
(Mating Connector Supplied) |
|---|
| RF Connectors: | 2.92mm Female |
|---|

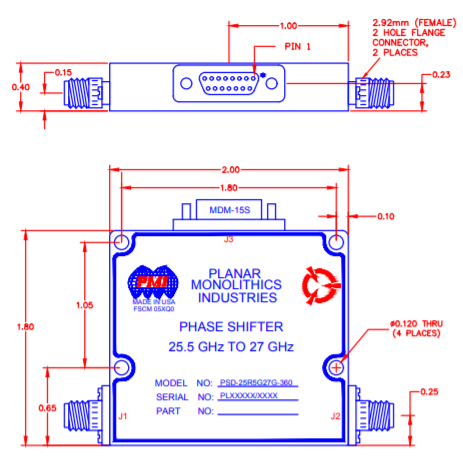

| Size: | 2.0" x 1.8" x 0.4" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Storage): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
