PT-100M40G-26D5DB-292FF Active
Bi-Directional Power Tap
Additional Documents

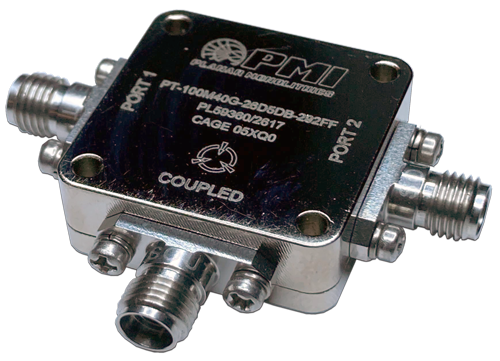

PMI Model number PT-100M40G-26D5DB-292FF is a bi-directional, 0.1 to 40 GHz, 26.5 dB power tap that provides excellent coupling, flatness, and VSWR. Package size is 1.0" x 1.0" x 0.4" with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.1 to 40 |
| Frequency, Min (GHz): | 0.1 |
| Frequency, Max (GHz): | 40 |
| VSWR: | 3.0:1 Max (Mainline), 2.0:1 Max (Coupled) |
| Maximum Input Power: | 27 dBm CW Max |
| Finish: | Nickel Plated |
| Coupling (dB): | 26 dB Typ (0.1 to 20 GHz), 27 dB Typ (20 to 40 GHz) |
| Coupling Flatness: | 4 dB Max (0.1 to 20 GHz), 5 dB Max (20 to 40 GHz) |
| Tap Directionality: | Bi-Directional |
| Mainline Loss: | 4 dB Max (0.1 to 20 GHz) 6 dB Max (20 to 40 GHz) |
| Coupling Phase Shift: | 90° Max |
| Coupling Accuracy: | 5 dB Max |
| Environmental Ratings: | |
| Temperature (Operating): | -55 °C to +85 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond.B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
