PTB-20-1050-5R0-20-220VAC-240FF
Preliminary
Portable Amplifier

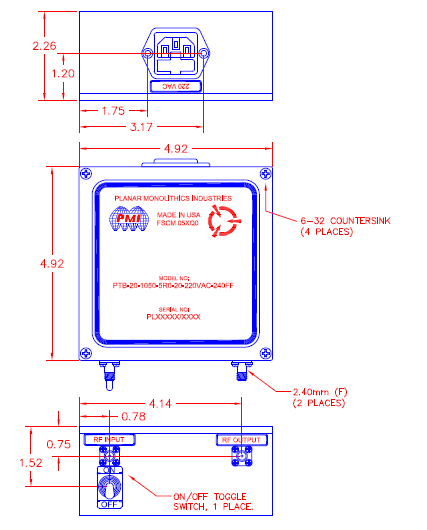

Quantic PMI Model PTB-20-1050-5R0-20-220VAC-240FF is a portable amplifier that operates over the 10 to 50 GHz frequency range that provides 20 dB of typical gain with an OP1dB of 10 dBm minimum and 15 dBm typical. This amplifier features and on/off switch that is located on the front panel. This unit operates on 220 VAC and is supplied with a 6 foot long power cord and EU style plug. Unit measures 4.92" x 4.92" x 2.10" with 2.4mm female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 10 to 50 |
|---|
| Frequency Min (GHz): | 10 |
|---|
| Frequency Max (GHz): | 50 |
|---|
| Gain (dB): | 20 dB Min |
|---|
| Gain Flatness (dB): | ±2 dB Max |
|---|
| Noise Figure (dB): | 5 dB Typ, 5.5 dB Max |
|---|
| OP1dB (dBm): | 10 dBm Min, 15 dBm Typ |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| AC Voltage Supply: | 220 VAC |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | 2.4mm Female |
|---|
| Size: | 4.92" x 4.92" x 2.26" |
|---|
| Finish: | Blue Powder Coated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
