PTB-20-10G40G-5R5-20-220VAC-1U-292FF
Preliminary

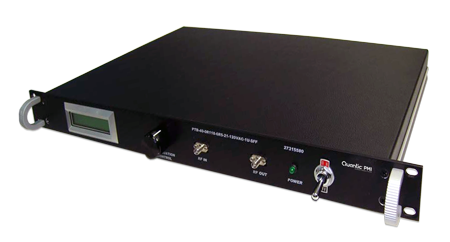

Rack Mount Low Noise Amplifier Assembly
Quantic PMI Model PTB-20-10G40G-5R5-20-220VAC-1U-292FF is a low noise amplifier in a U1, 19-inch rack mount chassis that operates over the 10 to 40 GHz frequency range with provides a minimum 20 dB gain, a gain flatness of ±3.5 dB maximum and a noise figure of 5.5 dB maximum up to 20 GHz. Unit has 2.92mm female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 10 to 40 |
|---|
| Frequency Min (GHz): | 10 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Gain (dB): | 20 dB Min |
|---|
| Gain Flatness (dB): | ±3.5 dB Max |
|---|
| Noise Figure (dB): | 5.5 dB Max up to 20 GHz |
|---|
| OP1dB (dBm): | 20 dBm Typ (10 to 18 GHz),
19 dBm Typ (18 to 40 GHz) |
|---|
| VSWR In/Out: | 2.0:1 Max / 2.5:1 Max |
|---|
| AC Voltage Supply: | 220 VAC, 50 Hz |
|---|
| RF Connectors (In/Out): | 2.92mm Female |
|---|
| Chassis: | U1, 19-inch rack mount |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -55 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -55 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
