PTB-27-0R1G6G-26-SFF-DC12-220VAC
Preliminary
Portable Amplifier

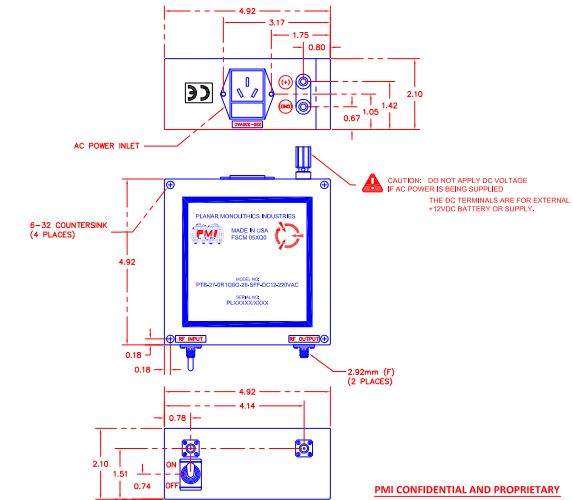

Quantic PMI Model PTB-27-0R1G6G-26-SFF-DC12-220VAC is a Portable Amplifier that operates over the 0.1 to 6 GHz, frequency range that provides 27 dB of gain typically with a minimum OP1dB of 26 dBm. This amplifier features an on/off switch that is located on the front panel and can operate on either 220 to 230 VAC or via an external 12 VDC battery pack for DC voltage supply. Unit measures 4.92" x 4.92" x 2.10" with 2.92mm female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 0.1 to 6 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Gain (dB): | 27 dB Typ |
|---|
| Gain Flatness (dB): | ±1.5 dB Typ |
|---|
| Noise Figure (dB): | 5 dB Typ |
|---|
| OP1dB (dBm): | 26 dBm Min |
|---|
| VSWR In/Out: | 2.0:1 Typ |
|---|
| Maximum RF Input: | 18 dBm |
|---|
| AC Voltage Supply: | 220 to 230 VAC |
|---|
| DC Voltage Supply: | +12 VDC |
|---|
| RF Connectors (In/Out): | 2.92mm Female |
|---|
| Size: | 4.92" x 4.92" x 2.1" |
|---|
| Finish: | Blue Powder Coat |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
