PTB-30-1R06R0-1R5-22-100VAC-SFF
Preliminary
Portable Amplifier
Quantic PMI Model PTB-30-1R06R0-1R5-22-100VAC-SFF is a portable amplifier that operates over the 1 to 8 GHz frequency range. This model provides typical gain of 30 dB with an OP1dB of 22 dBm minimum, this amplifier features N-type female connectors and an on/off switch located on the front panel.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 1 to 6 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Gain (dB): | 30 dB Typ |
|---|
| Gain Flatness (dB): | ±1.5 dB Max |
|---|
| Noise Figure (dB): | 1.8 dB Typ, 2.2 dB Max |
|---|
| OP1dB (dBm): | 22 dBm Typ, 21 dBm Min |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| AC Voltage Supply: | 100 VAC, 50 Hz |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | SMA Female |
|---|

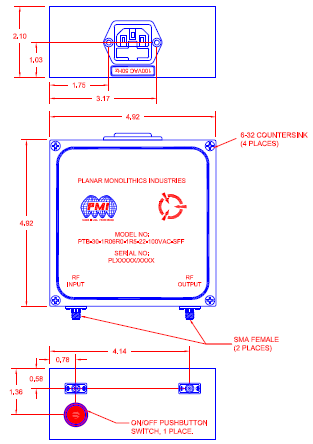

| Size: | 4.92" x 4.92" x 2.10", *Excluding Connectors* |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -20 ºC to +70 ºC |
|---|
| Temperature (Non-Operating): | -55ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
