PTB-30-2040-5R0-10-100VAC-292FF *
Active
Portable Amplifier

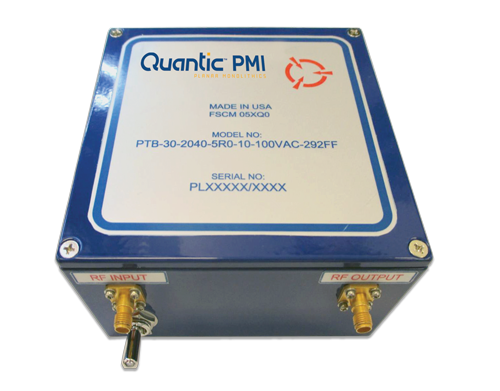

Quantic PMI Model PTB-30-2040-5R0-10-100VAC-292FF is a portable amplifier that operates over the 20 to 40 GHz, frequency range that provides 30 dB of typical gain with an OP1dB of 10 dBm minimum. This amplifier features an On/Off switch that is located on the front panel, operates on 90 to 100 VAC and is supplied with a 6' long power cord. Unit measures 4.92" x 4.92" x 2.26" with 2.92mm female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 20 to 40 |
|---|
| Frequency Min (GHz): | 20 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Gain (dB): | 30 dB Typ |
|---|
| Gain (Measured): | 30 dB Typ - Measured 27.6 dB |
|---|
| Gain Flatness (dB): | ±2 dB Max |
|---|
| Gain Flatness (dB) - Measured: | ±2 dB Max - Measured ±1.24 dB |
|---|
| Noise Figure (dB): | 5 dB Typ |
|---|
| OP1dB (dBm): | 10 dBm Min |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.98:1 |
|---|
| AC Voltage Supply: | 90 to 100 VAC |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | 2.92mm Female |
|---|
| Size: | 4.92" x 4.92" x 2.26" |
|---|
| Finish: | Blue Powder Coated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
