PTB-30-6G18G-2R5-15-220VAC-SFF
Preliminary
Portable Amplifier

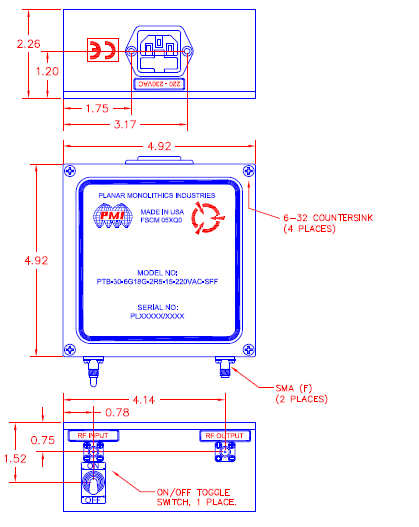

Quantic PMI Model PTB-30-6G18G-2R5-15-220VAC-SFF is a portable amplifier that operates over the 6 to 18 GHz, frequency range that provides 30 dB minimum of gain with an OP1dB of 15 dBm typical. Features include an On/Off switch that is located on the front panel. This unit operates on 220 to 230 VAC and is supplied with a 6 foot long power cord. Unit measures 4.92" x 4.92" x 2.26" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 6 to 18 |
|---|
| Frequency Min (GHz): | 6 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Gain (dB): | 30 dBm Min |
|---|
| Gain Flatness (dB): | ±3 dB Max |
|---|
| Noise Figure (dB): | 2.5 dB Typ |
|---|
| OP1dB (dBm): | 15 dBm Typ |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| Maximum RF Input: | 10 dBm Min |
|---|
| AC Voltage Supply: | 220 to 230 VAC |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | SMA Female |
|---|
| Size: | 4.92" x 4.92" x 2.26" |
|---|
| Finish: | Blue Powder Coated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | 20 ºC to +50 ºC |
|---|
| Temperature (Non-Operating): | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
