PTB-32-218-4R0-8-120VAC-SFF
Active
Portable Amplifier

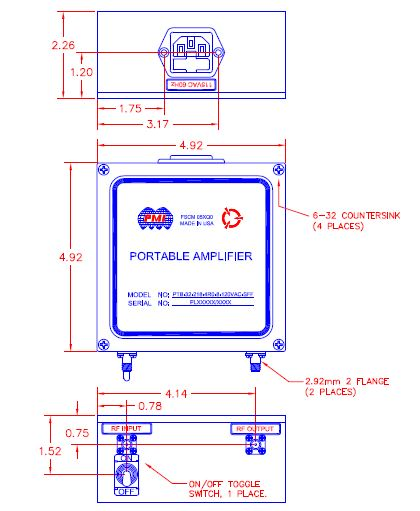

Quantic PMI Model PTB-32-218-4R0-8-120VAC-SFF is a Portable Amplifier that operates over the 2 to 18 GHz frequency range that offers 28 dB of minimum gain with a gain flatness of ±2 dB, a noise figure of 4 dB and OP1dB of 8 dBm minimum. This amplifier features an on/off switch that is located on the front panel and requires an 110 to 115 VAC, 60 Hz power source for operation. Unit measures 4.92" x 4.92" x 2.10" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 2 to 18 |
|---|
| Frequency Min (GHz): | 2 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Gain (dB): | 28 dB Min |
|---|
| Gain Flatness (dB): | ±2 dB Max |
|---|
| Noise Figure (dB): | 4 dB Max |
|---|
| OP1dB (dBm): | 8 dBm Min |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| AC Voltage Supply: | 110 to 115 VAC, 60 Hz |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | SMA Female |
|---|
| Size: | 4.92" x 4.92" x 2.26" |
|---|
| Finish: | Blue Powder Coated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -40 °C to +100 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
