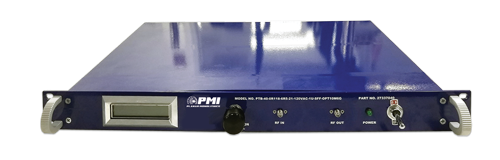

PTB-40-0R118-6R5-21-120VAC-1U-SFF-OPT10M6G
Integrated Microwave Assembly
Additional Documents
- Product Feature
- Test Report - 4/21/20
- PL13768 - Unit Data
- PL28573 - Unit Data
- PL28692 - Unit Data
- PL28692-2 - Unit Data
- PL28737 - Unit Data
- PL28801 - Unit Data
- PL28801-1 - Unit Data
- PL29204 - Unit Data
- PL29205 - Unit Data
- PL29205-2 - Unit Data
- PL29206 - Unit Data
- PL29207 - Unit Data
- PL29207-1 - Unit Data
- PL29208 - Unit Data
- PL29209 - Unit Data
- PL29209-2 - Unit Data
- PL29309 - Unit Data
- PL29310 - Unit Data
- PL29311 - Unit Data
- PL29312 - Unit Data
- PL29313 - Unit Data
- PL29458 - Unit Data
- PL29459 - Unit Data
- PL29460 - Unit Data
- PL29461 - Unit Data
- PL29462 - Unit Data
- PL29463 - Unit Data
- PL29464 - Unit Data
- PL29465 - Unit Data
- PL29465-1 - Unit Data
- PL29465-2 - Unit Data
- PL29466 - Unit Data
- PL29468 - Unit Data
- PL29468-1 - Unit Data
- PL29469 - Unit Data
- PL29470 - Unit Data
- PL29470-2 - Unit Data
- PL29610 - Unit Data
- PL29611 - Unit Data
- PL29611-2 - Unit Data
- PL29762 - Unit Data
- PL29763 - Unit Data
Quantic PMI Model No. PTB-40-0R118-6R5-21-120VAC-1U-SFF-OPT10M6G is an integrated microwave assembly that provides high gain and operates from 0.01 to 6 GHz. This unit features integrated digitally controlled attenuators with ranges up to 60 dB. The attenuation can be controlled via the external optical encoded knob or via RS-232 and Ethernet. The amount of selected attenuation is displayed on the front panel LCD screen.
Standard Features:
- 6-foot power cord supplied
- On / Off Power Switch with LED indicator
- Attenuation level displayed on the LCD display
- Attenuation control via front panel optical encoded knob or via RS-232 and Ethernet
- Real-Time attenuation control
Available Options:
- Ultra-Fine 0.25 dB/Step Attenuation Resolution
- Internal High-Speed Modulator
- Other Gain Levels from 0 to 80 dB
- Frequency Ranges from 0.01 to 40 GHz
- Higher Output power levels up to +30 dBm
- 220 VAC (European Compatible) Voltage Supplies
Product Specifications
| General Parameters: | |
|---|---|
| Frequency Range: | 0.01 to 6 GHz |
| Gain: | 40 dB Min |
| Gain Flatness: | ±1.5 dB (0.1 to 6 GHz) ±3.5 dB (0.01 to 0.1 GHz) |
| Noise Figure: | 6.5 dB Typ (0.1 to 6 GHz) 10.0 dB Typ (0.01 to 0.1 GHz) |
| OP1dB: | +20 dBm Min |
| Attenuation Range: | 50 dB Min, 60 dB Typ (1 dB Steps) |
| AC Power: | 120 VAC, 60 Hz |
| Control: | 0 to 60 dB, Baud Rate 9600 No. of Bits: 8, Stop Bits: 1 No Parity, No Flow Control |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +100 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
| Export Classification (ECCN): | EAR99 |
