PTB-42-1G40G-12-292FF-DC12-100VAC * Active

Portable Amplifier

Product Feature

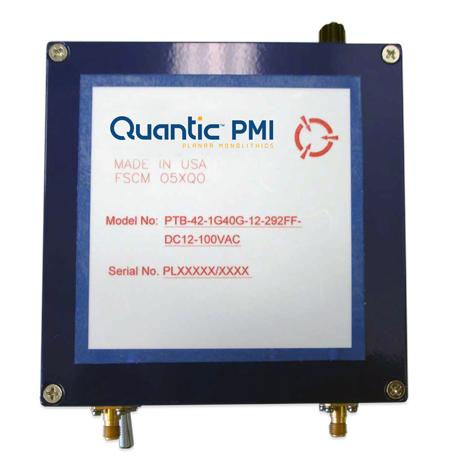

Quantic PMI Model PTB-42-1G40G-12-292FF-DC12-100VAC is a portable amplifier that operates over the 1.0 to 40.0 GHz frequency range. This model provides 40 dB of typical gain with an OP1dB of +22 dBm typical (1.0 to 18.0 GHz) and +18 dBm typical (18.0 to 40.0 GHz). This amplifier features an On/Off switch that is located on the front panel. This amplifier can operate on either 90 to 100 VAC or via an external 12 VDC battery pack or DC voltage supply and has 2.9mm female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Range: 1.0 to 40.0 GHz
Frequency Min: 1 GHz
Frequency Max: 40 GHz
Gain: +40 dB Typ
Gain (Measured): +40 dB typ - Measured 38.1 dB
Gain Flatness: ±2.5 dB Max
Gain Flatness (Measured): ±2.5 dB Max - Measured ±1.85 dB
Noise Figure: 5.0 dB Typ, Mid-Band - Measured 4.64 dB
OP1dB: +22 dBm Typ (1.0 to 18.0 GHz),
+18 dBm Typ (18.0 to 40.0 GHz)
VSWR In/Out: 2.5:1 Max - Measured 1.82:1/ 1.53:1
Maximum RF Input: +15 dBm
AC Voltage Supply: 90 to 100 VAC
DC Voltage Supply: +12 VDC
Connectors (In/Out): 2.92mm (F)
Weight: 2.75 oz
Size: 4.92" x 4.92" x 2.10"
Finish: Blue Powder Coated
Environmental Ratings:
Temperature: -40 ºC to +85 ºC Operating
Non-Operating: -40 ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
