PTB-50-1G40G-12-292FF-DC12-220VAC
Active
Portable Amplifier

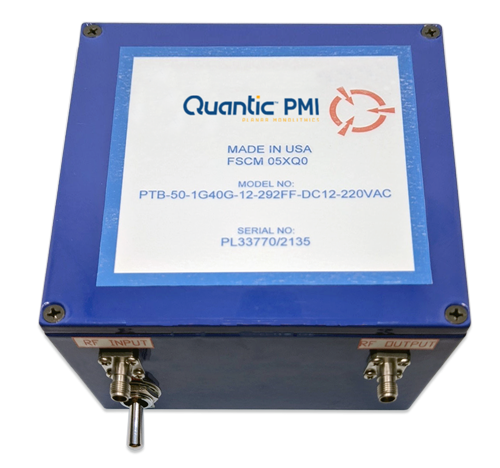

Quantic PMI Model: PTB-50-1G40G-12-292FF-DC12-220VAC is a portable amplifier that operates over the 1 to 40 GHz frequency range. This model provides 50 dB of typical gain with an OP1dB of 22 dBm typical (1 to 18 GHz) and 18 dBm typical (18 to 40 GHz). This amplifier features an on/off switch that is located on the front panel. This amplifier can operate on either 220 to 230 VAC or VIA an external 12 VDC battery pack or DC voltage supply. This unit measures 4.92" x 4.92" x 2.1" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 1 to 40 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 40 |
|---|
| Gain (dB): | 50 dB Typ |
|---|
| Gain Flatness (dB): | ±2.5 dB Typ |
|---|
| Noise Figure (dB): | 5 dB Typ Mid-Band |
|---|
| OP1dB (dBm): | 22 dBm Typ (1 to 18 GHz),
18 dBm Typ (18 to 40 GHz) |
|---|
| VSWR In/Out: | 2.5:1 Typ |
|---|
| Maximum RF Input: | 15 dBm |
|---|
| AC Voltage Supply: | 220 to 230 VAC |
|---|
| DC Voltage Supply: | +12 VDC (External) |
|---|
| RF Connectors (In/Out): | 2.92mm Female |
|---|
| Size: | 4.92" x 4.92" x 2.1" |
|---|
| Finish: | Blue Powder Coated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -40 °C to +100 °C |
|---|
| Humidity: | MIL-STD-202F, METHOD 1038 COND. B |
|---|
| Shock: | MIL-STD-202F, METHOD 2138 COND. B |
|---|
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
|---|
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
|---|
