PTB-60-120-5R0-10-100VAC-SFF *
Active
Portable Amplifier

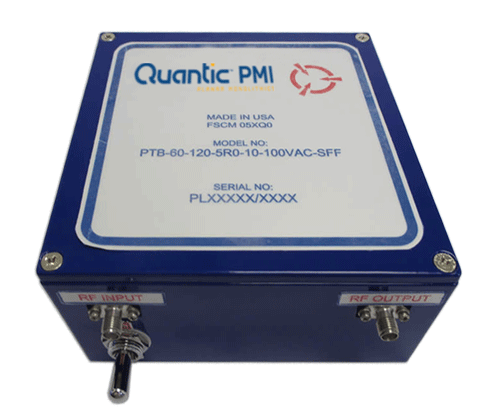

Quantic PMI Model PTB-60-120-5R0-10-100VAC-SFF is a Portable Amplifier that operates over the 1 to 20 GHz frequency range that provides 60 dB of typical gain with an OP1dB of 10 dBm minimum. This amplifier features an On/Off switch that is located on the front panel, operates on 90 to 100 VAC and is supplied with a 6 foot long power cord. Unit measures 4.92" x 4.92" x 2.1" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 1 to 20 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Gain (dB): | 60 dB Typ |
|---|
| Gain (Measured): | 60 dB Typ - Measured 64.5 dB |
|---|
| Gain Flatness (dB): | ±3 dB Max |
|---|
| Gain Flatness (dB) - Measured: | ±3 dB Max - Measured ±1.29 dB |
|---|
| Noise Figure (dB): | 5 dB Typ |
|---|
| OP1dB (dBm): | 10 dBm Min |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.54:1 / 1.81:1 |
|---|
| AC Voltage Supply: | 90 to 100 VAC |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | SMA Female |
|---|
| Size: | 4.92" x 4.92" x 2.10" |
|---|
| Finish: | Blue Powder Coated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
