PTB-60-120-5R0-10-115VAC-SFF
Active
Portable Amplifier

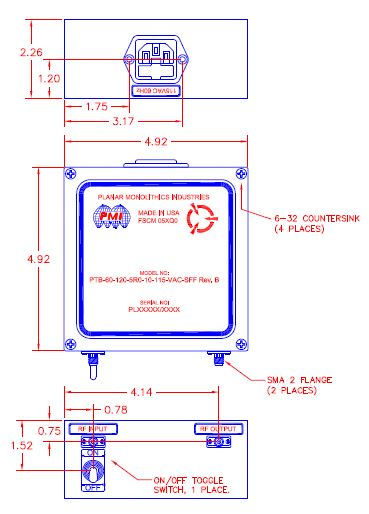

Quantic PMI Model PTB-60-120-5R0-10-115VAC-SFF is a Portable Amplifier that operates over the 1 to 20 GHz frequency range that provides 60 dB of minimum gain with an OP1dB of 10 dBm minimum. This amplifier features an On/Off switch that is located on the front panel and operates on a 115 VAC, 60 Hz voltage supply. Unit measures 4.92" x 4.92" x 2.26" with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Range (GHz): | 1 to 20 |
|---|
| Frequency Min (GHz): | 1 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Gain (dB): | 60 dB Typ |
|---|
| Gain Flatness (dB): | ±3 dB Typ |
|---|
| Noise Figure (dB): | 5 dB Max |
|---|
| OP1dB (dBm): | 10 dBm Min |
|---|
| VSWR In/Out: | 2.0:1 |
|---|
| AC Voltage Supply: | 115 VAC, 60 Hz |
|---|
| DC Voltage Supply: | N/A |
|---|
| RF Connectors (In/Out): | SMA Female |
|---|
| Size: | 4.92" x 4.92" x 2.26" |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 ºC to +85 ºC |
|---|
| Temperature (Non-Operating): | -40 ºC to +100 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
