PTB-60-120-5R0-10-115VAC-SFF-2U Active

Rack Mountable Low Noise Amplifier

PTB-60-120-5R0-10-115VAC-SFF-2U
  • PTB-60-120-5R0-10-115VAC-SFF-2U
  • PTB-60-120-5R0-10-115VAC-SFF-2U
Product Feature

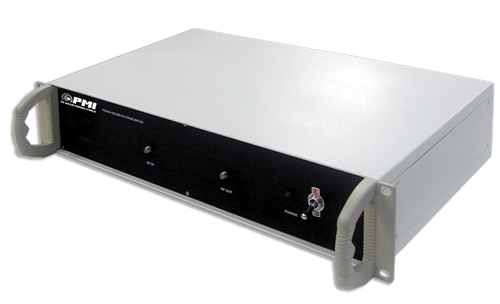

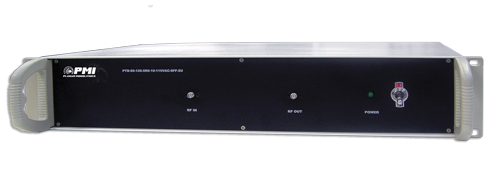

PMI Model PTB-60-120-5R0-10-115VAC-SFF-2U is a Low Noise Amplifier in a 2U Rack Mount Chassis that operates from 1 to 20 GHz.   Unit offers a minimum gain of 60 dB with ±3 dB maximum gain flatness, noise figure of 5.5 dB maximum and OP1dB 10 dBm minimum. Housed in a 2U Height, 10" Depth, to fit in 19" Rack, uses 110 to 115 VAC, 60 Hz input power and has SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency Min (GHz): 1
Frequency Max (GHz): 20
Gain (dB): 60 dB Typ
Gain Flatness (dB): ± 3 dB Max
Noise Figure (dB): 5.5 dB Max
OP1dB (dBm): 10 dBm Min
AC Voltage Supply: 110 to 115 VAC, 60 Hz
DC Voltage Supply: N/A
RF Connectors (In/Out): SMA Female
AC Connector: 6' Power Cord Supplied
Size: 19.0" x 10.08" x 3.47"
Chassis: 2U Height, 10" Depth
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 °C to 85 °C
Temperature (Non-Operating): -55 °C to 85 °C
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
